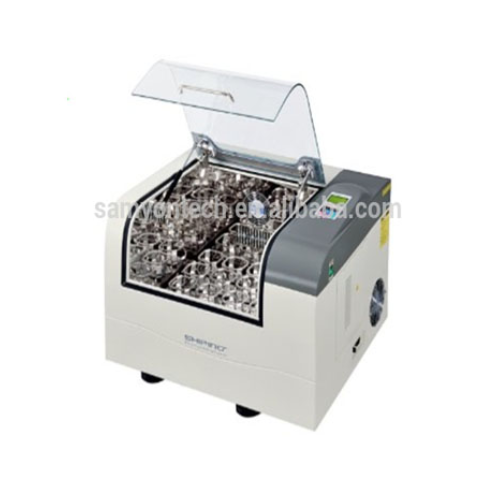

Samyon SPH-103D 台式恒温器振动台 (150W)

Control mode: P.I.D (Microcomputer scans the micro-processing chip)

Display mode: LCD (Double display of large liquid crystal screen)

Circulation mode: Forced convection

Shaking mode: Orbital shaking

Drive mode: Balancing device with single shaft (Chinese patent)

Temperature range: Ambient temperature+5°C-60°C

Accuracy of temperature: ±0.1°C

Temperature uniformity: ±0.5°C

Rotary frequency: 30~60rpm

Rotary accuracy: ±1rpm

Shimmy amplitude: $0-50mm

Safety function: Sound and light alarm for temperatures above or below the upper or lower limit; alarm for speeds above or below the upper or lower limit; separate over-temperature protector; shutdown protection for door opening.

Additional functions: Storage of rotary speed, startup after power again, recording of parameters, temperature and speed calibration, clock display and display of room temperature and actual temperature.

Programming functions: Programing of repetition, steps and eight curves settings

Heater: 150W

Timing range: 0-500 hours/continuous

Size of shaking: 260×260(mm)

Maximum capacity: 100ml*9 or 250ml*4

Standard configuration: 100mlx9

Number of shaking plate:  One

Net weight: 31kg

Gross weight: 54kg

Size of cavity: 360×340×280(mm)

Shape size: 560×530×560(mm)

Power: 280W

Motor: 60W Inverter motor

Power supply: AC 200-240V 50-60HZ

Material of cavity:  Imported high quality stainless steel mirror panel

Material of box: ABS special engineering plastic box shell
