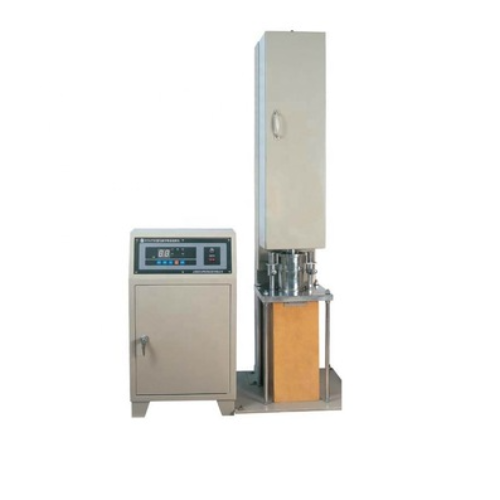

Samyon SY-0702 Marshall Electric Compactor (370W)

I. Main Technical Characteristics

1.The instrument adopts floor type structure, and it is made of two parts that is mechanical transmission and control box. The mechanical transmission device drive for electric motor, reduction motor and chain.

2.Circuit control adopts single microprocessor control, and it can preset counter. The count value can be chosen from 0 to 999 readily. The compaction times can be set in advance that automatic compact, automatic stop, automatic cut off power supply and close electric motor, to ensure that stopped at the convenient hammer lifting loading and unloading position.

3.The instrument is suitable to compact Φ 101.6mm*63.5mm sample.


II. Main technical parameters and specifications

1.Weight of the hammer :4536g+9kg;

2.The drop of heavy hammer :457mm+1.5mm;

3.Test mode: suitable to Φ101.6mm*63.5mm;

4.Compaction rate :(60+5) time /min;

5.Compaction times :(0~999) times;

6.Laminated wood compaction seat :457mm*200mm*200mm;

7.Cement concrete seat :120mm*460mm*480mm;

8.Power supply: AC 220V+10% ,50Hz;

9.The power of the electric motor :370w;

10.Dimension :540mm*540mm*1740mm;

11.Total weight: about 160kg.
