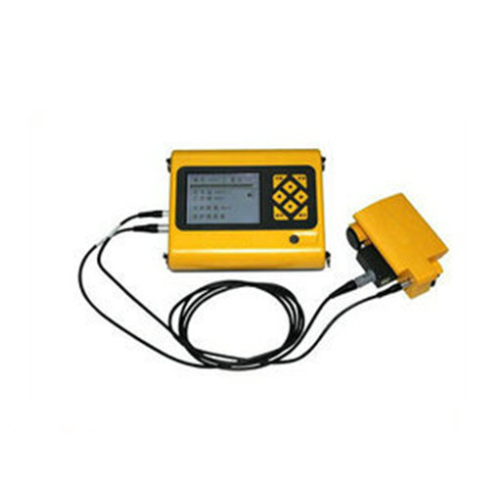

Samyon SYR51 Rebar Locator System (6mm~50mm)

Features:

1.longer service life of the connector Clip:the instruments has long service life because of using lemo connector Clip which comes from swiss and uses for aircraft industry.

2.good quality of signal cable:the signal cable has long service life because of its flexible and substance.

3.high precision and stability:the instrument can locate the steel-bar accurately and quickly.

4.longer service life of the sensor:improve the service life by paste abrasion resistance allowance bottom of the sensor.

5.single sensor:no-change sensor in test,switching between high and low test range can assure the precision of test data and the test depth.

6.display test information real-time:display the test data directly to avoid man-made errors.

7.grid and section scan mode:instrument can display steel bar distribution and scan steel bar without concrete boundary limited.

8.three-wheel steel-bar scan system:the system can assure scan path along line and the precision of test data.

9.powerful windows data process and analysis software:software can display analysis result by diagram.test data can be export to word or Excel easily.



Technical Data

Applicable steel-bar diameter: Φ6mm-Φ50mm

Concrete backing thickness:

+ Low range:6mm~90mm;

+ High range:7mm~190mm

Permissible error

+ Low range

6~59: ±1

60~69: ±2

70~90: ±4

+ High range

7~79: ±1

80~119: ±2

120~190: ±4

Tested range of steel-bar diameter: Φ6mm- Φ50mm

Permissible error of steel-bar diameter test: ±1 grade

Applicable environmental:

+ Temperature: -10℃~+40℃; Dampness: <90%RH

+ EMI: no Strong electromagnetic field

Power supply: 6 dry cells,work more than 30 times
