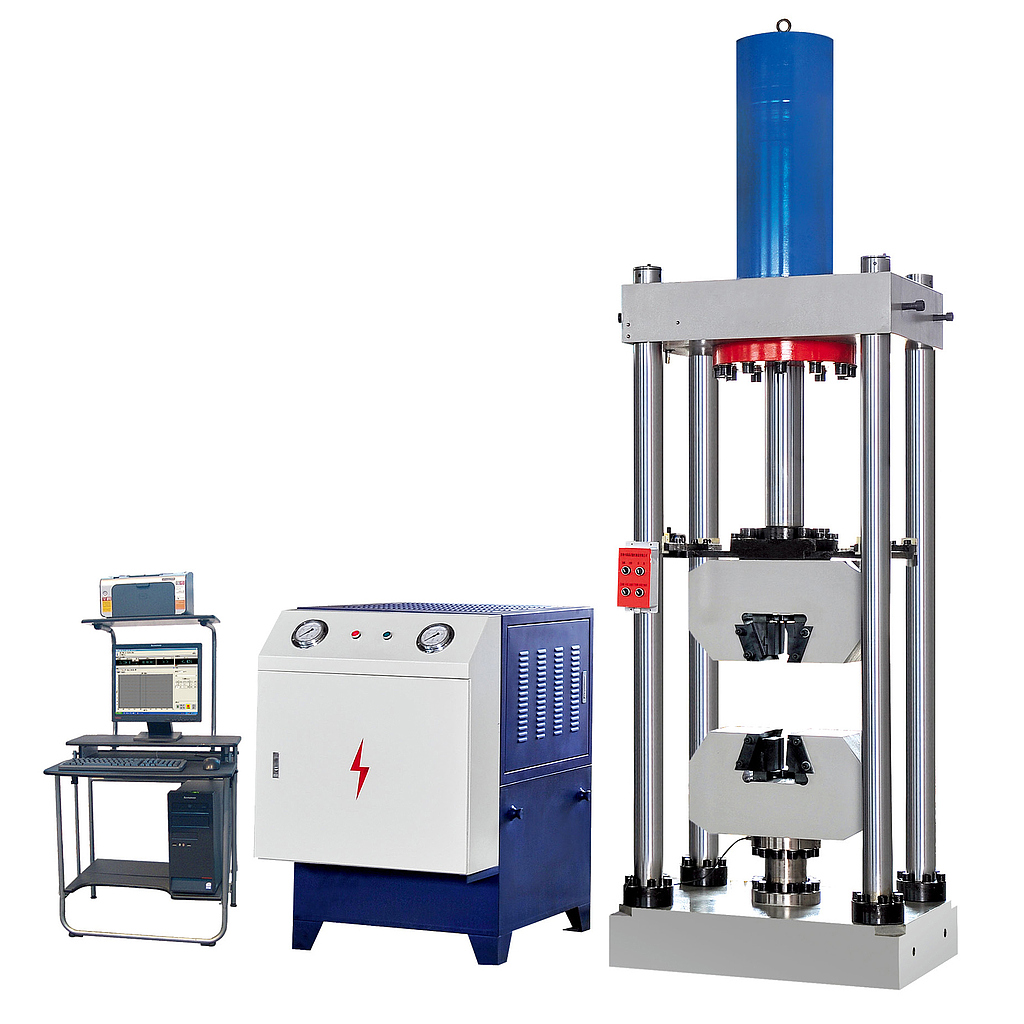

Samyon SYW-600DL Reinforcement Steel Bars and Cast Iron the Single Space Tensile Strength Testing Machine (6~600kN)

Main Function:

This product is mainly used for the tensile test of metal materials. It is totally conformed to the requirement of GB/T228.1-2010,Metallic materials.Tensile testing.

Main Specifications and Technical Parameter:

Class of Testing Machine: Class 0.3/0.5

Maximum Testing Force(kN): 600

Measure Range of Testing Force(kN): 6~600

Value Display Accuracy of Testing Force: No more than ±0.3%/±0.5% inaccuracy from the value display

Discrimination of Displacement Measure (mm): 0.005

Accuracy of Displacement Measure: No more than ±0.5 % inaccuracy from the value display

Discrimination of Deformation Measure(mm): 0.001

Maximum Piston Stroke(mm): 680

Maximum Spacing of Tensile Jaw(mm)(Including Piston Stroke): 700

Accuracy of Deformation Measure: No more than ±0.5 % inaccuracy from the value display

Overload Protection: If beyond the 5% of the full scale

Clamping Method: Hydraulic wedge clamping

Round Specimen Clamping Range(mm): Φ14~Φ60

Flat Specimen Clamping Range(mm): 0~60

Column Number(Unit): 4

Overall Dimension(mm): 1000×750×3160

Total Power(kW): 7.5

Weight(kg): 4500
