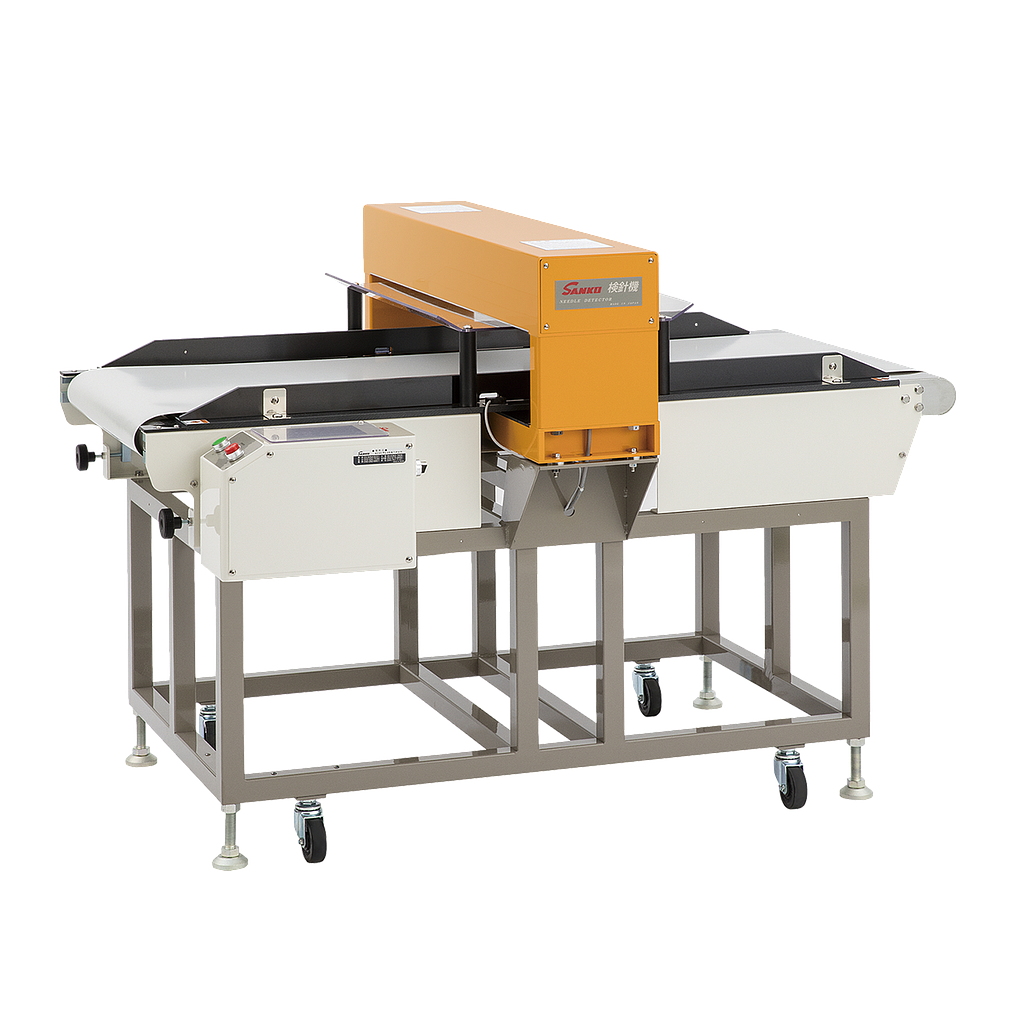

SANKO APA-6900 输送机类型针头探测器

Detecting method: Magnetic induction

Detecting abilitySteel ball φ0.8(height 120mm) ,φ1.0(height 140mm),φ1.2(height 170mm)

Detecting area / Passing width600mm

Passing height120mm (with guide: passing height 110mm)

                          140mm (with guide: passing height 130mm)

                          170mm (with guide: passing height 160mm)

Alarm deviceBuzzer, lamp, belt stop (with backward run function)

Belt speed39m/min. (50/60HZ)

Power sourceAC100~240V 50/60Hz 300VA

Dimensions1030(D)×1055±50(H)×1500(W) ・・・detecting height 120mm

                     1030(D)×1075±50(H)×1500(W) ・・・detecting geight 140mm

                     1030(D)×1105±50(H)×1500(W) ・・・detecting geight 170mm

Weightabout 220Kg

Pass line800±50mm

OptionEmergency stop SW, foot SW, remote SW
