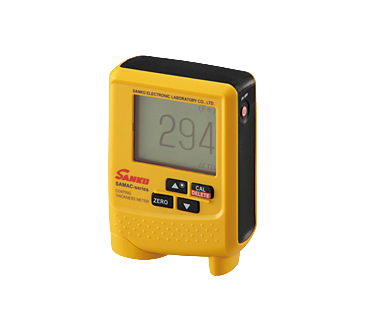

SANKO SAMAC-F 电磁涂层测厚仪 (0~2.50mm)

Range: 0~2.50mm

Display: Graphic LCD ( data , messages ) , Backup light

Resolution: 1μm: 0~999μm

         0.1μm: 0~400μm

          0.5μmm: 400~500μm

         0.01mm: 1.00~2.50 mm

Accuracy: 0~100μm:  ±1μm or ±2% of reading

                101μm~2.50mm: ±2% of reading

Probe: One point contact constant pressure type, with Cross V cut,

Measuring part: φ28mm, Probe part: φ10mm

Additional function:

     1.Switching of measuring mode (hold/non- interruption)
     2.Auto-Power-OFF

     3. Backup light

   4.Switching of Display Resolutions

Power source: Dry Battery (LR03 X 2),Continuous operation hours : 25 hours

Temperature: 0~40℃ (non-condensing)

Dimensions and weight: 63 (W) ×84 (H) ×30 (D) mm, about125g

Accessories: Thickness standards, Zero plate for checking, Carrying case
