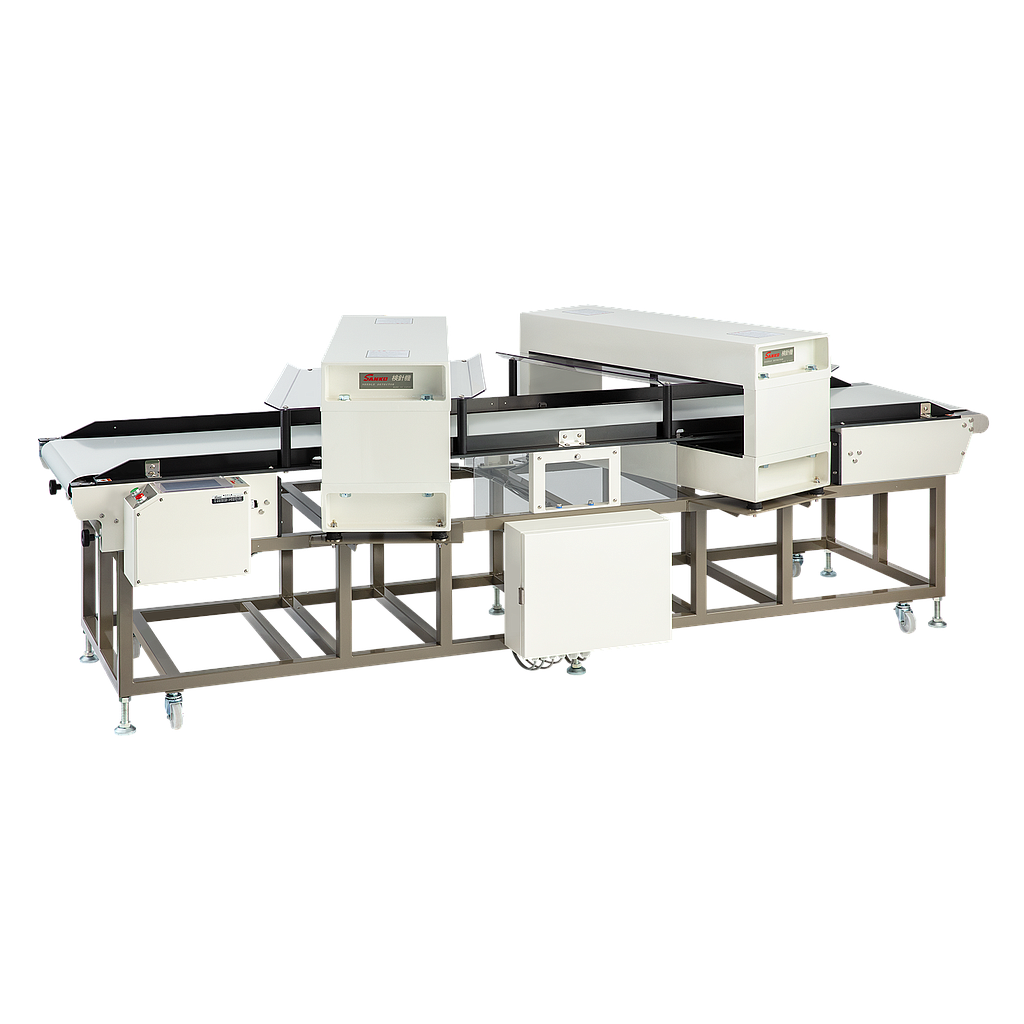

SANKO SC1-600W 针铁探测器 (Twin heads; 600mm; 25m/min)

Detecting method: Electromagnetic induction

Detecting ability:

+ Steel ball φ1.0

+ Stainless φ2.5

Detecting area/ Passing width: 600mm

Passing height: 230mm standard (with guide: passing height 220mm)

Alarm device: Buzzer, lamp, belt stop (with backward run function)

Belt speed: 25m/min. (50Hz), 30m/min (60HZ)

Power source: AC100V 50/60Hz about 300VA

Dimensions: 1185(D)×1180±50(H)×3100(W)

Weight: ≈400kg

Pass line: 800±50mm

Option: Bell mouth guide, Emergency stop switch, Foot switch, Remote switch

Note: Reversal-V-shape twin heads
