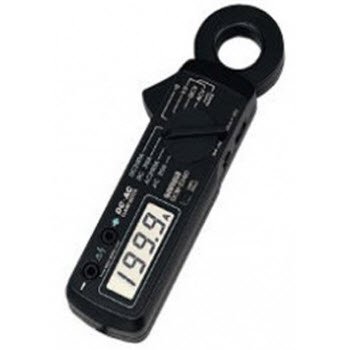

SANWA DCM-22AD Clamp Meter (200A)

ACA : 20/ 200A
DCA : 20/ 200A
ACV : 2/ 20/ 200/ 500V
DCV : 2/ 20/ 200/ 500V
Resistance : 2k/ 20k/ 200k/ 2000kOhm
Continuity : Buzzer sounds at less than approx. 40Ohm. Open voltage : approx. 0.43V
Bandwidth : 40~ 400Hz ( ACA) , 40~ 500Hz ( ACV)
Display : 1999
Clamp diameter/ Conductor size : 22mm/ 10x21mm
Withstand voltage : 2000VAC
Battery : R03 x2
Size / Weight : H179xW56xD26.5mm / approx. 140g
Standard accessories included : Test lead ( TL 61) , Carrying case ( C CL) , Instruction manual




Detail

Manual

Datasheet

Features:
■DC / AC current measurable max. 200A
■Continuity check buzzer
■Data hold
■Slim core for narrow space
Display : numeral display 1999
Sampling rate : 2 times / sec. for numeral display
AC frequency bandwidth : 40〜400Hz (ACA), 40〜500Hz (ACV)

Option:
Clip adapter : CL-15a, CL-14,CL-DG3a, TL-9IC
Test lead : TL-91M
