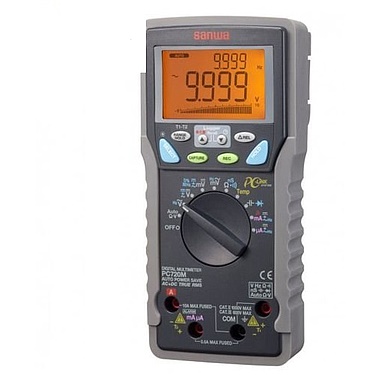

Sanwa PC720M 数字万用表(PC链接,TrueRMS,±(0.06%+ 2))

- DCV: 60m/600m/10/100/1000V ±(0.06%+2)  0.01mV

- ACV: 60m/600m/10/100/1000V ±(0.5%+3)  0.01mV

- DCA: 600µ/6000µ/60m/600m/6/10A ±(0.2%+4)  0.1μA

- ACA: 600µ/6000µ/60m/600m/6/10A ±(0.6%+3)  0.1μA

- Ω resistor: 600/6k/60k/600k/6M/60MΩ ±(0.1%+40)  0.1Ω

-Capacitance 15Hz-50kHz ±(0.04%+4) 0.01Hz

-Temperature : -50℃-1000℃(đo kiểu K) ±(0.3%+2)   1℃

- Data hold, Range hold, Peak hold

-Auto Power off

-Pin: 6LR61(9V)x1

-184x86x52mm /430g

-PC Link Dataloger (Option)

-Standard accessories included : Test lead,Carrying casE, Instruction manual




■4 digits 9999 count & 3-5/6 digits 6000 count
■AC True RMS
■Dual display with backlight
■Automatic measurement for ACV/DCV/Ω under  low impedance
■High speed bar graph
■Capacitance measurement
※Not suitable for measurement of condensers with large leak current.■K type temperature -50℃〜1000℃
※Optional accessory K-AD is necessary.
※K type temp. sensor K-250PC is included as a standard accessory.
■Frequency measurement (AC sine wave only)
■Logic frequency measurement, duty cycle
■Conductance measurement
■MAX, MIN, MAX-MIN recording mode
■Capture (peak hold) 1ms in duration
■Data hold, Range hold
■Relative value
■Auto power saving mode (30min.) (cancelable)
■Optical Link USB interface (optional)
Data Logging Mode
■87,328 data points in built-in memory
(single display)
43,664 data points in built-in memory
(dual display)
■Selection of measurement interval
■Auto-standby mode when a sampling speed
of 30s or longer is selected
■Export logged data to PC
※Optional accessory PC Link7 is necessary.
Display : numeral display 9999 & 6000, bar graph 41 segments
Sampling rate : 5 times/sec., 60 times/sec. for bar graph Max.EN61326-1:2006
■Battery life : Approx. 100h (alkaline battery) at DCV range

Software : PC Link7
Optical PC link cable : KB-USB7
Clamp probe : CL-20D, CL-22AD, CL33DC
Temperature probe : T-300PC (PC Link software is necessary.) K-8-250〜800
K type adapter : K-AD
Test lead : TL-21M, TLF-120
Carrying case : C-PC7
Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
