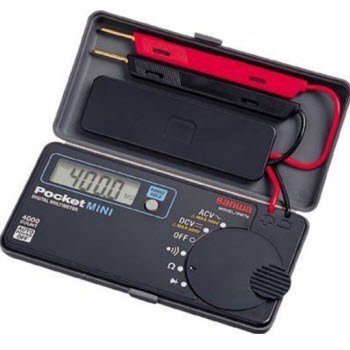

SANWA PM7a 数字万用表 (0.7％)
制造商: SANWA Model: PM7a - 联系
|
Function |
Measuring Range |
Accuracy |
Resolution |
Input Impedance |
|
DCV |
400m/4/40/400/500V |
±(0.7%+3) |
0.1mv |
DC:10M-100MΩ AC:10M-11MΩ |
|
ACV |
4/40/400/500V |
±(2.3%+10) |
0.001v |
|
|
Resistance |
400/4K/40K/400K/4M/40MΩ |
±(2.0%+5) |
0.1Ω |
|
|
Continuity |
Buzzer sounds at between 10Ω and120Ω.Open Voltage:Approx.0.4V |
|||
|
Diode Test |
Open voltage:Approx.1.5V |
|||
|
Bandwidth |
40-400HZ (sine) |
|||
|
Battery |
Coin type lithium battery CR2032(3V)*1 |
|||
|
Size/Weight |
H115*W58*D18mm/100g |
|||
|
Standard Accessories |
Hand strap, Instruction Manual |
|||
Details
Features:
■3-3 / 4 digits 4000 count
■0.7% best accuracy
■Range hold
■Auto power off (15min.)
■Low power ohm (input voltage 0.4V) at
continuity range
■Power saving design
Display : numeral display 4000
Sampling rate : 3 times / sec.
AC frequency bandwidth : 40〜400Hz
Option:
Clip adapter : CL-14, CL-15a
■3-3 / 4 digits 4000 count
■0.7% best accuracy
■Range hold
■Auto power off (15min.)
■Low power ohm (input voltage 0.4V) at
continuity range
■Power saving design
Display : numeral display 4000
Sampling rate : 3 times / sec.
AC frequency bandwidth : 40〜400Hz
Option:
Clip adapter : CL-14, CL-15a
