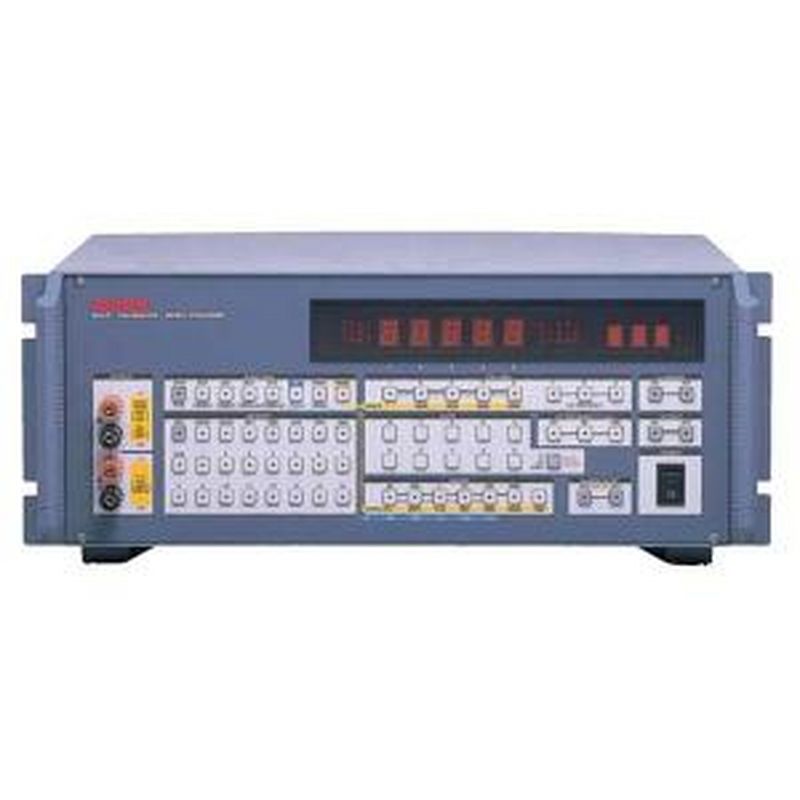

Sanwa STD5000M 多功能校准器/ 用于电子测量工具(+ - (0.05%+ 30mV),1mV)

Measuring range
ACV: 0-1000V / 0.03%
ACV: 0-1000V / 0.06%
DCA: 0-2000mA / 0.05%
ACA: 0-2000mA / 0.05%
Resistance: 46m hug / 0.05%
Generation range
ACV: 0-1000V / 0.03%
ACV: 0-1000V / 0.06%
DCA: 0-2000mA / 0.05%
Current ACA: 0-2000mA / 0.05%
Resistors: 500k

Detail



Manual

OverView
The STD5000M is a calibrator with soft touch buttons that can generate
a desired DC voltage / current, AC voltage / current, resistance, frequency, etc.
with a high degree of accuracy and stability.
The STD5000M is with a memory function allowing a broad range of uses for the device.
Ranges
■Voltage(DC·AC) : 0〜1000V(6 ranges)
■Current(DC·AC) : 0〜2000mA(6 ranges)
■Resistance1 : 0〜500kΩ(10Ω steps)
■Resistance2 : 24 steps fixed resistance value(4 kinds 6 ranges)
■Hz : 40Hz〜999kHz(5 ranges)

Features
■High accuracy 0.03%(DCV DC mA)
Reliable accuracy is achieved by using the standard voltage IC
with a constant-temperature bath for the reference voltage and
wire wound resistor and metal film resistor with high tolerance
and low temperature coefficient for the resistance element.
■Calibrates 6 types of functions
With the calibration elements of 6 functions(DCV, ACV, DCA, ACA, OHM, Hz)
 incorporated, it can be used for calibrating and
maintaining the DMM, DPM (digital power meter), circuit tester and industrial instruments.
■Installs 90 (6x15) output memories
With 90 (6x15) output memories installed, it is possible to save desired setting.
■User-friendly speedy operability
Use of soft-touch push button switches for operation on the panel(except the power switch).
Use of semiconductor switches with greater heat resistance and durability
for change switches of the circuit, and latch-type relays requiring less electro motive force.
■With overload protection device
To enhance security, overload protection in case of low voltage
and current generation is performed on the semiconductor circuit,
 and overload protection in case of medium and high voltage generation
(50V or more) is achieved by releasing the output terminal and circuit.
