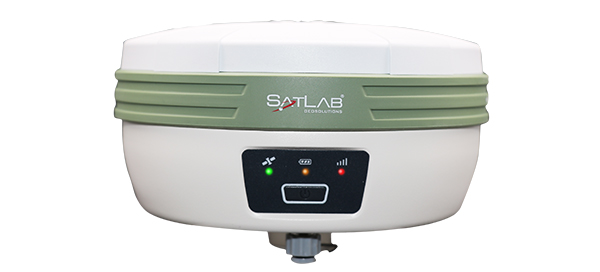

SATLAB SL700 GNSS 接收器

GNSS

Signal Tracking: GPS (L1C/A, L1C, L2C, L2P, L5)

                 GLONASS¹ (L1C/A, L2C, L2P, L3, L5)

                  BeiDou² (B1, B2, B3)

                  Galileo³ (E1, E5AltBOC, E5a, E5b, E6); IRNSS (L5)

                  QZSS (L1C/A, L1C, L2C, L5, L6); SBAS (L1, L5)

                  L-Band (Up to 5 Channels) TerraStar®

No. of Channels 555

MEASUREMENT PERFORMANCE

Real-time Kinematic: H: 8mm + 1ppm RMS / V: 15mm + 1ppm RMS

Network RTK: H: 8mm + 0.5ppm RMS / V: 15mm + 0.5ppm RMS

High-precision Static: H: 2.5mm + 0.1ppm RMS / V: 3.5mm + 0.4ppm RMS

Static and Fast Static: H: 2.5mm + 0.5ppm RMS / V: 5mm + 0.5ppm RMS

Initialization time: <10s

Initialization Reliability: 99.9%



COMMUNICATIONS

Network Internal 3G mobile network, including

UTMS/WCDMA/GPRS/GSM modes.

Bluetooth: V2.1 + EDR

Wi-Fi: 2.4GHz ,802.11b/g/n

NFC: Yes

INTERNAL RADIO

Frequency: 403MHz-473MHz

Power: 0.1~1W

Protocols: Support most of radio communication

protocls

Transmitting Speed: 19200 bps/9600 bps

Working Range: Typically 3-5km, optimally 5-8km


ENVIRONMENT

Water/dustproof: IP67 environmental protection

                 Waterproof to 1m (3.28ft) depth

                 Temporary Submersion

                 hock resistant body to 2m (6.5ft) pole drop

Temperature -40°C to 65°C Operating

 -40°C to 75°C Storage

Humidity: 95%, condensing

Physical Properties

Internal Battery: 5000mAh lithium-ion rechargeable and remove battery

Internal Battery Life

: RTK rover(UHF/Cellular)≥10 hours

External Power:  6~28V DC

Power Consumption: 4.2W

Weight: ≤1.2kg (without battery)
