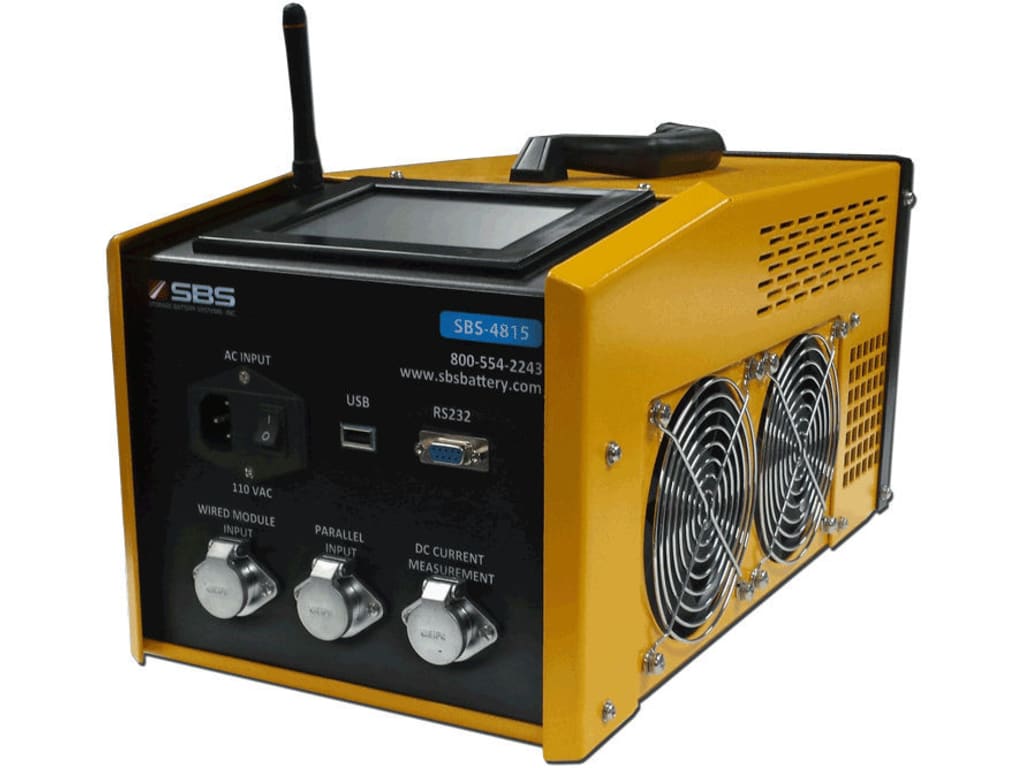

SBS SBS-4815CT 电池容量测试仪(60V,150 A)

  • 制造商: SBS
    Model: SBS-4815CT
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Specifications
DC Volt Range: 20–60 Vdc
DC Current Range: 20–40 Vdc: 0–75 Amps
40–60 Vdc: 0–150 Amps
Accuracy & Resolution: ±0.5%, 0.1 Amp
Display: 5.7" LCD Color Touch Screen
DC Power Supply: 20–60V
AC Power Supply: 120 Vac, 50/60 Hz
Communications Port: USB / RS232
Internal Memory: 8MB Flash
Main Tester Size : 16.25 x 9.0 x 9.0 in.
Carrying Case Size: 20.5 x 19.7 x 15 in.
Weight: 21 lb. (main tester only); 62 lb. (tester, accessories, case)
Includes
Main unit
Instruction manual
Wireless 2/6/12 Volt modules (qty. 6 +1 spare)
Computer analysis software
DC test (power) cables
3 ft. AC power cable
RS232 wire
Carrying case with wheels
Optional Accessory
8400-600A: 600 DC Current Clamp
SLAVE-CAB-8400>8400: Paralleling Cable, SBS-4815 to SBS-4815/8400
SLAVE-CAB-8400>S : Paralleling Cable, SBS-4815 to S-Series
SLAVE-CAB-8400>(2)S: Paralleling Cable, SBS-4815 to (2)S-Series
BCT110/220-1000: 750 Watt Voltage Transformer 110/220 Vac 50/60 Hz
Pelican case upgrade available
