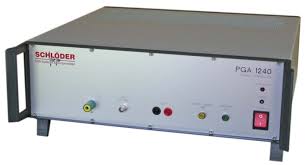

Schloeder PGA 1240-5A 共模传导干扰模拟器 ( 200 kHz)

Frequency range: DC - 1 MHz (Small signal -3 dB)

Power band: DC – 200 kHz

Slew rate: 100 V/µs

Offset: ± 1 mV (± 0.1 mV / °C)

Voltage gain:  10 ± 0.1 % (± 0.01 % / °C)

[Option ultra stable gain: 10 ± 0.1 % (± 10 ppm/°C)]

Output voltage: 50 Vrms / ± 75 Vpeak

Output current: 5 Arms / ± 7.5 Apeak

Distortion: (DC – 100 kHz, Load ≥ 4 Ω) < 0.10%

Input impedance: 100 kΩ

Output impedance: << 1 Ω and 50 Ω

Max. input voltage:80 V (cont.), 100 V (< 1 min)

Broadband noise: (10 Hz – 1 MHz, Input 50Ω) 0.5 mVrms

Power dissipation: (each side) 260 W (100 ms)

Mains voltage: 230 VAC / 50 Hz

Remote control USB

Generator Specifications

Frequency range: DC, 0.05 Hz - 300 kHz; resolution 0.05 Hz

Frequency precision: ± 20 ppm

Signal types: Sine, Square, Triangular

Machanical data

Dimensions: (W x H x D) 449 mm x 133 mm x 436mm (3HE)

Weight app. 14 kg

Detail

Delivery: PGA 1240, user manual, CD with operating software, power cable 2m length, USB-A / USB-Cable 3m

length, BNC / BNC cable 1,5m length, protocol factory calibration traceable acc. to ISO 17025.

Datasheet
