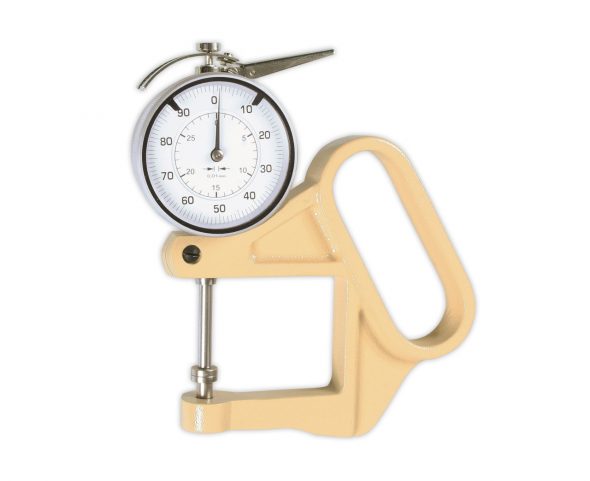

SCHMIDT DMH-3-1 测厚仪 (25 mm)
制造商: SCHMIDT Model: DMH-3-1 - 联系
Resolution: 0.01 mm
Measuring range: 25 mm
Depth of jaw: 50 mm
Measuring pressure: 1 N
Feeler shape: A/B/C/G/H
Measuring principle: Self closing
Weight, net (gross): Approx. 300 g (350 g)
Details
Special Features
Thickness gauge DMH-3-1 features an easy to read analog display along with the high accuracy
The thickness gauge is available with 5 different feelers, which can be found below
Measuring by spring force of 1 N
Opening by lifting device – self closing thickness gauge DMH-3-1
Thickness gauge is optional available with big foot (Code F) for on table use
