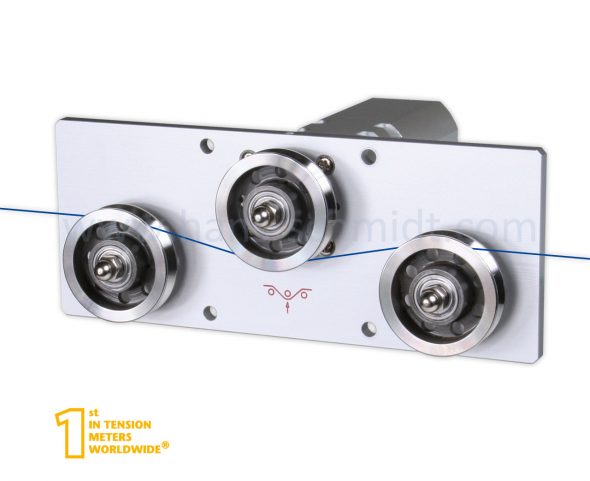

SCHMIDT FSH-50K 张力传感器 (0 – 50 daN)

Tension Range: 0 – 50 daN

Measuring Head Width*: 250 mm

SCHMIDT Calibration Material**: steel rope 1.50 mm Ø (7x7x0.20)

Calibration: According to SCHMIDT factory procedure

Accuracy: ±1.5 % full scale and ±1 digit. Other calibration material ±3 % full scale or better

Overload protection: 100 % of tension range

Measuring principle: Strain gauge bridge

Measuring roller deflection: Max. 0.5 mm

Natural frequency: Approx. 500 Hz, depending on tension range

Signal processing: Analog (Option: digital)

Temperature drift: less than ±0.05 % full scale/ºC

Output signal:

+ Standard: 0 – 1 V DC (analog) impedance: ≥ 5 kΩ

+ Option: 0 – 10 V DC (analog), 4 – 20 mA DC (current)

+ Option digital: USB (500 Hz), RS-232 (200 Hz), RS-422 (200 Hz) or Wi-Fi

Damping (fg): Standard (analog): 30 Hz (other values on request)

Temperature range: 10 – 45 ºC

Air humidity: 85 % RH, max.

Power supply: +15…24 V DC, max. 21 mA (standard output); Code A3: 50 mA, Code 422: 50 mA, Code 232: 40 mA

Housing material: Aluminium

Dimensions: See dimensions

Weight, net (gross): approx. 490 g (650 g)

Other tension ranges and measuring head widths available on request.

Other measuring units available, such as g or kg.

* Outer distance between outside guide rollers or outside dimensions of front plate

** Suitable for 95 % of applications PA = Polyamide Monofilament

Delivery Includes: Tension sensor  with transport packaging, operating instruction in german or english (as requested), Certificate of Compliance with the order 2.1 according EN 10204 free of charge
