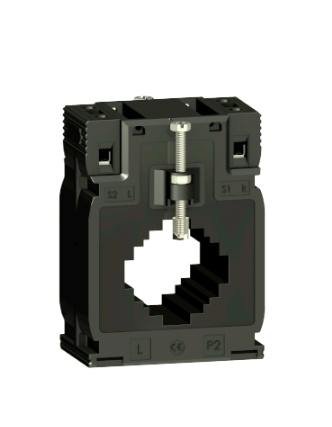

SCHNEIDER METSECT5MC060 Current Transformer

Current transformer type: Tropicalized for busbars and cables

Rated current: 600A

Secondary current: 5A

Normal air thermal current: 36 kA

Rated operating voltage: < 720 V AC (50/60 Hz)

Rated insulation voltage: 3 kV

Safety factor: ≤5

Accuracy class: Maximum power class 0.5: 12 VA, maximum power class 1: 15 VA

Transformation ratio: 600/5

Dynamic withstand current: 2.5 Ith

Mounting support: Busbars, DIN rail, mounting plate

Protection rating: IP20

Dimensions: 70 x 95 x 45 mm (outer), 41 x 41 mm (inner)

Diameter: 32 mm

Weight: 0.449kg.
