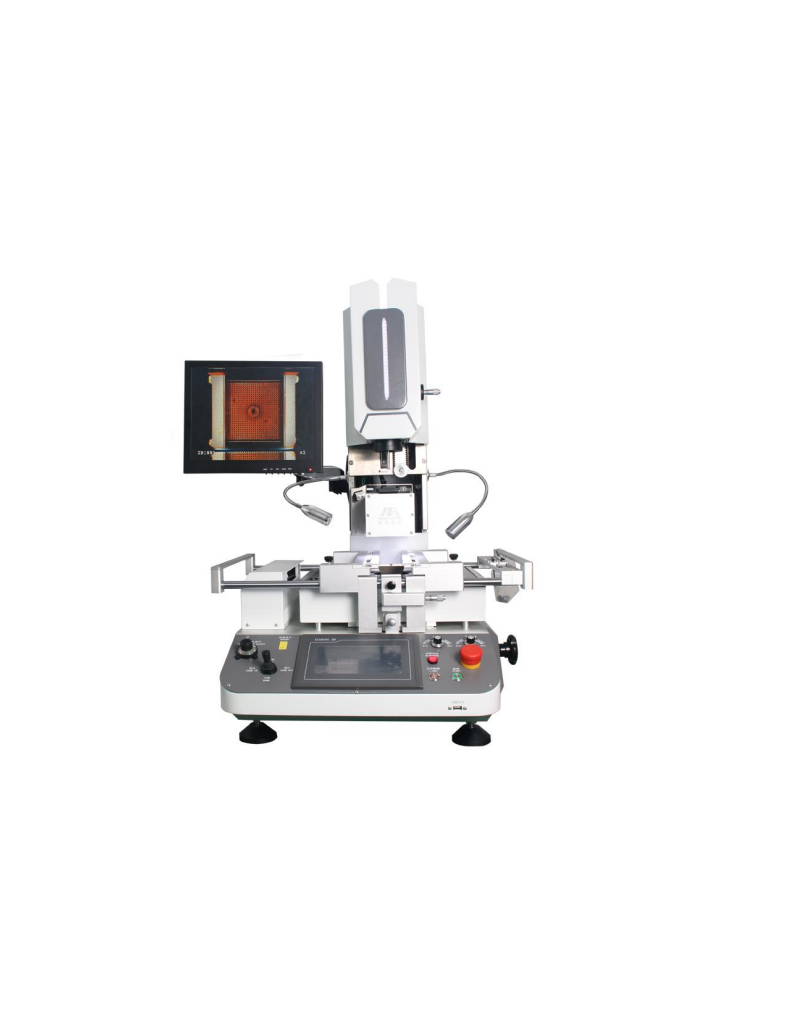

Seamark ZM ZM-R720A Rework station LED/BGA/SMD (Extra version)

Replaced by ZM-R7220A

TTL Power: Max 5600W (Heater 5400W+Others 200W)

Power Source: AC 220V±10, 50/60 Hz

Top Heater Power: 1000 W

BTM Heater Power: 1200 W

BTM Preheating power3200 W

Preheating Temperature.350℃Max

Preheating Temperature: 400℃Max

V-type slot PCB positioning

Laser assisted positioning

Equipped with universal fixture

Multi-function movable fixed bracket

Support PCB Size: Max 415×370mm  Min 20*20mm

IR Preheating Area: 380mm×280mm

Adaptive ChipBGA, QFN, CSP, POP, QFP, Micro SMD, LED patch lamp bead…

Support IC Size: Max 60×60mm   Min 0.6×0.6mm

Minimum Pitch Applicable:   0.15mm - Min

Dimensions: L640×W850×H950 mm

Display system: 15”HD industrial LCD

Operation Mode: 7”HD touch screen

Vacuum adsorption: Automatic

Support Chip weight: 90g

Alignment Accuracy: ±0.01mm

Temperature Control: K-thermocouple closed loop control, accuracy up to ±1

Machine weight:  about 86kg

Appearance Color: white

This machine is suitable for 0.6*0.6mm ICs and micro LED components rework
