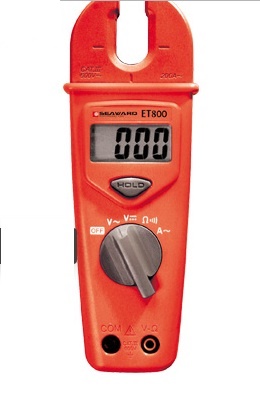

Seaward ET800 Clamp Meter (AC 200A; 600V)

AC Voltage : 0 - 600 V

Resolution 1V

Accuracy +/- (1.5% + 3d)

DC Voltage : 0 - 600 V

Resolution 1V

Accuracy +/- (1.0% + 2d)

AC Current : 0 - 200A

Resolution 1A

Accuracy +/- (3.0% + 3d)

Ohm : 0 - 2000Ohm

Resolution 1 Ohm

Accuracy + (1% + 2d)

Sampling Rate 2.5 times/sec

Overload Indication OL is displayed for Amps and Ohm functions. Limit value for V functions

Continuity Beeper

Threshold Approx. 25 Ohm – 400 Ohm

Indicator 2KHz Tone Buzzer

Auto Power Off Approx 30 minutes

Safety Standard CAT. III 600V,IEC 61010 – 1 & designed to meet UL3111 specifications

Maximum Conductor Size :12mm dia

Battery Life 250 hours

Size (W x L x H) 84mm x 175mm x 31mm

Weight 280g
