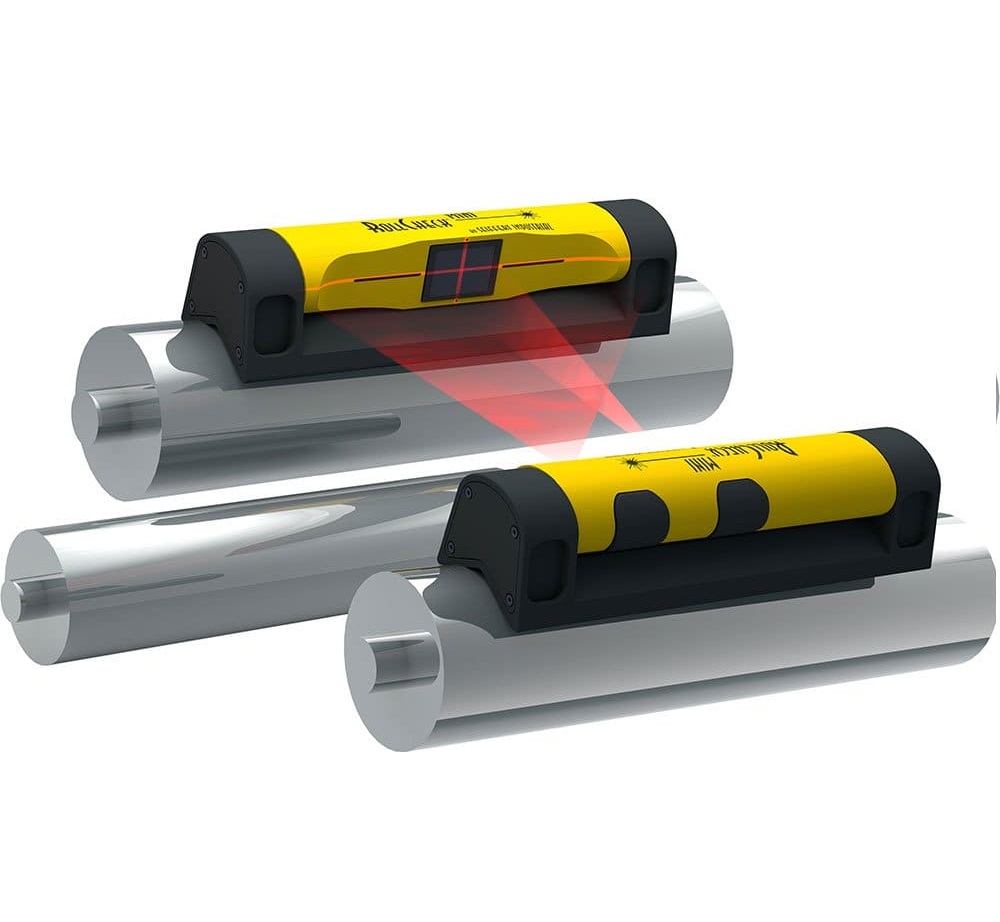

Seiffert SX-4150 RollCheck® 迷你激光辊对齐工具 (1200m; <0.03mm/0.305m)

  • 制造商: Seiffert
    Model: SX-4150
    来源: USA
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




TRANSMITTER SX-4150T

• Operating distance: Max. 4 ft. (1200 mm)

• Accuracy: < 0.001”/ft. (< 0.03 mm/0.305 m)

• Laser type: 2 ea. 532nm visible green laser lines, 45˚ full angle

• Laser power: < 1mW, Class 2

• Safety precautions: Do not stare into beam

• Laser compliance: CFR parts 1040.10 and 1040.11

• Laser line thickness: 0.017” (0.4318 mm) at 9 ft. (2.8 m)

• Laser calibration: Factory calibrated, check yearly

• Environmental protection: Water resistant, dust proof and impact resistant

• Controls: Laser ON/OFF rocker switch

• Battery type: High power polymer li-Ion rechargeable battery. 3.7v 4000mAh

• Operating time: 14 hours continuous at 72˚ F (22˚ C)

• Temperature:

Operating: 15˚F (-9˚C) to 104˚F (60˚C)

Storage: -4˚F (-20˚C) to 140˚F (60˚C)

• Frame: Rigid aluminum frame, powder-coat paint finish

• Laser housing: Aluminum, powder-coat paint finish

• Mounting diameters: Roll diameters 4” (101mm)

• Mounting straps: Set of 2 attachment straps included: 2 ea. 10” (254 mm) bungee straps for diameters up to 4” (101 mm)

• Weight: 1.6 lbs. (.73 Kg)

• Dimensions: 8.5” (216 mm) W x 2.46” (62 mm) D x 2.0” (50 mm) H

REFLECTOR SX-4150R

• Reflector size: 1” (25 mm) x 1.4” (36 mm)

• Frame: Rigid aluminum frame, powder-coat paint finish

• Reflector housing: Aluminum, powder-coat paint finish

• Mounting straps: Set of 2 attachment straps included: 2 ea. 10” (254 mm) bungee straps for diameters up to 4” (101 mm)

• Weight: 1.5 lbs. (.70 Kg)

• Dimensions:  8.5” (216 mm) W x 2.46” (62 mm) D x 2.0” (50 mm) H

CARRYING CASE

• Material: Black, high density hard polyethylene

• Dimensions: 17” (432 mm) W x 12” (305 mm) D x 4.125” (105 mm) H

• Insert: Die cut foam

• Carrying case weight: 2.21 lbs. (1.0 Kg)

• Total system weight: 5.3 lbs. (2.4 Kg)
