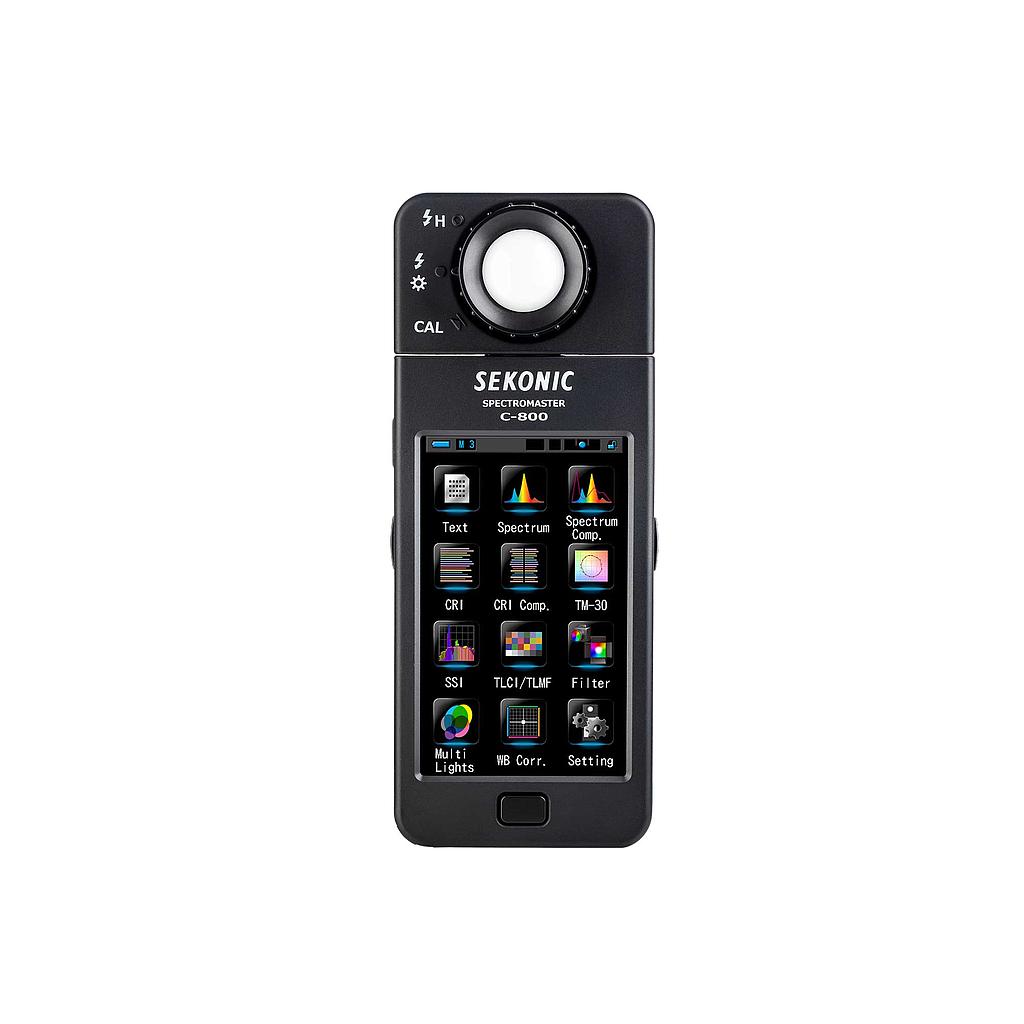

SEKONIC C-800-U SPECTROMASTER Spectrometer (1~200,000 lx, 380nm~780nm)

Sensor: CMOS linear image sensor

Measuring Modes Ambient Light: Ambient light

Measuring Modes Flash: Cordless, Cord-in (PC)

Color Measuring Mode (Display Mode): Text mode, Spectrum mode, Spectrum comparison mode, CRI mode, CRI comparison mode, TM-30 mode, SSI mode, TLCI/TLMF modem Filter mode (lighting and camera filter), Multi Lights mode, White Balance Correction mode

Measuring Range (ISO 100) Ambient Incident Light: 1 to 200,000 lx * 0.09 to 18,600 fc * Class A of JIS C 1609-1: 2006 “Illuminance meters Part 1: General measuring instruments”

Measuring Range Flash Incident Light: 20 to 20,500lx・s; 1.86 to 1,900 fc・s

Spectral Wavelength Range: 380nm to 780nm

Color Measuring Range Ambient Light: 1,600 to 40,000K

Color Measuring Range Flash Light: 2,500 to 40,000K

Color Measuring Units Color Rendering Properties: CRI (Ra /R1 to R15), TM-30-18 (Rf, Rg), SSI(t, d, 1, 2) TLCI, TLMF

Color Measuring Units Color Parameters: Correlated color temperature (CCT), Deviation (Δ uv), x, y, Hue, Saturation,

Color Measuring Units (Photo/Cinematography): LB/CC filter number (camera/lighting filter), LB/CC index, CC number,

Target Color Temp Range: 2,500K to 10,000K

Shutter Speeds Range (Ambient Light): Auto - Max.: 15 sec., Min.: 0.5 sec.

Shutter Speeds Range (Flash Light): 1s to 1/500s (plus 1/75, 1/80, 1/90, 1/100, 1/200, 1/400)

Operating Temperature: -10 to 40 deg. C

Storage Temperature: -10 to 60 deg. C

Power source: 1.5V x 2 (AA battery), USB bus-power

LCD: 4.3" color dot matrix touch panel LCD

Weight (KG): 0.23

Dimensions DxWxH (cm): 18.30 x 7.30 x 2.70

Item Includes

Sekonic C-800 SpectroMaster Color Meter, Case, Strap, Start-up Guide, Safety Precation
