SEKONIC FEM-1000V-MT 在线粘度计 (L, M,H, 0.50~20000mPa.s)

Viscosity Measuring Range / Accuracy / Repeatability

        L range: 0.50~1000mPa・s / ±1%(Reading) / ±1%(Reading)

        M range: 10.0~5000mPa・s / ±1%(Reading) / ±1%(Reading)

        H range: 500~20000mPa・s / ±1%(Reading) / ±1%(Reading)

Measuring fluid temperature range: 0~150℃

Temperature Range: 0~180℃

Calibrating method: Calibration with Standard Liquids for Calibrating Viscometers (JIS Z8809-2011)

Output: Viscosity and temperature each 4~20mA any setting output

(output resolution 16bit) And RS232C interface output

System requirements: 10~40°C, 20~80%RH(No condesation)

Power: AC100~240V 50/60Hz

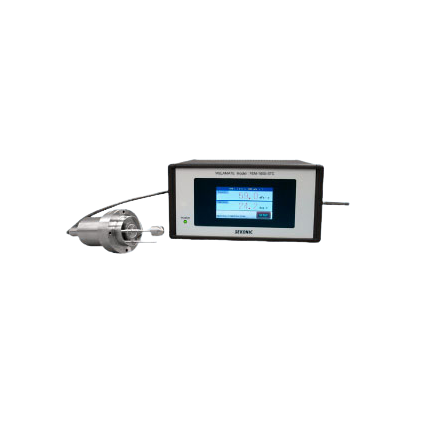

Equipment configuration

        Probe Model: FVM80A-PMT

        Controller model: FEM-1000V-STC

        Other: Probe ⇔ controller connection cable L = 5m; Controller power supply cable L = 2.5m
