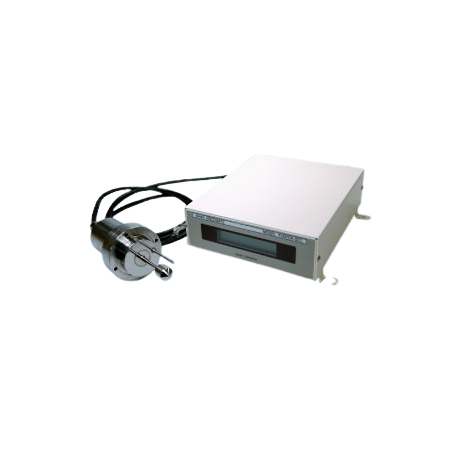

SEKONIC FVM72A-VM-200T3 Inline Viscometer (L/M/H; 0.5～20000mPa･s, ±2%)

Measuring Range

        L-Type *Note 1: 0.5～1000mPa･s

        M-Type *Note 1: 10～5000mPa･s

        H-Type *Note 1: 500～20000mPa･s

Accuracy: ±2%(Reading) *Note 2

Repeatability: ±1%(Reading) *Note 2

Temperature Range: 0～100℃

Wetted temperature range: 0～70℃

Calibrating method: Calibration with Standard Liquids for Calibrating Viscometers (JIS Z8809-2011)

Viscosity display: 3-digit LCD display　 (Without decimal point)

Temperature display: 3-digit LCD display　 (Without decimal point)

System requirements: 10～40°C, 20～80%RH　（No condensation）

Analog output: 0～5V viscosity × 1 　 temperature × 1

Digital output: RS232C interface output

Power: AC adapter (Input: AC100～240V, Output: DC9V 2,600mA)

Probe mounting size: Insertion hole diameter：Φ35(T3,T2), Mounting bolt：Φ50(T3) on the circumference, M4×4 pieces(T3)

Wetted Materials: Flange: SUS304, the vibrator part: SUS316

Weight and Dimensions:

        Probe:Φ34 (T2) ・ Φ70 (T3 flange) xL220 (including a connecting portion) approximately 0.75kg

        Controller: H72xW220xD220[mm] (except the connecting portion and terminal block) approximately 1.7kg

Accessories: Connecting cable (5m) *Note 3, manual

Option: Temperature sensor (Pt)
