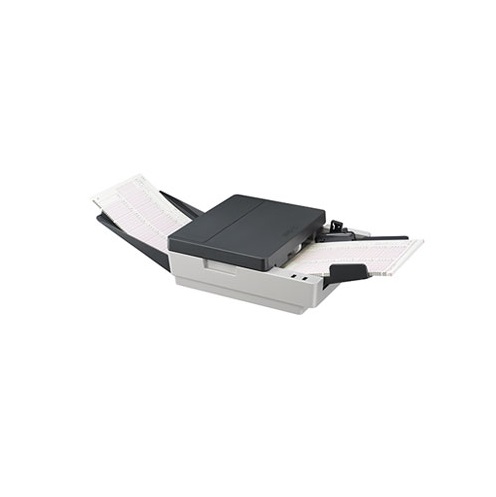

SEKONIC SR-1800EX Optical Mark Reader (1800 forms/hour)

Read Sensor

        Read Head: 1(Single side) or 2(Dual Side)

        Mark Discrimination: 16 steps (256 Degrees)

        Light Source: Infra Red Ray (940 nm) or Visible Red Ray (660 nm)

        Mark Implements: Infra Red Ray: Pencil, Visible Red Ray : Pencil + Pen

        Read head Channels: 1/6 inch(48 Channels)

        Mark Shapes: Rectangle Ovals and Circles

        Read Technique: Reading Reflective Sensor

Connect with PC (Interface): USB(2.0) or RS-232C(9 pins 9,600 to 115,200 bps)

Equipment Control

        Display: LED(2 LEDs “READY” &“ERROR” )

        Operation Button: 2(START / CLEAR)

Form Input

        ADF(Hopper): Approx. 50 forms

Scanning

        Form Width: 63.55 to 228.60 ㎜(2.5 Inch to 9.0 Inch)

        Form Length: 110 to 355.6 ㎜(4.3 Inch to 14.0 Inch)

        Number of Rows: 108 Rows

        Number of Columns: 48 Columns

        Mark Position Under: 5,184 Mark Positions

        Paper Weight: 72 to 135 ㎏(0.11 to 0.19 ㎜ / 84 to 157 g/m2)

        Throughput speeds : *Approx. 1800 forms / hour

Form Output

        Stacker: 100 forms

Power

        Voltage / Relatives: AC100V 50 / 60Hz to 240V 50 / 60Hz AC Adaptor: Input 24V 2.1A

Conditions

        Temp / Humid: 5 to 35℃(41 to 95゜ F) / 30 to 80%

Dimensions W x H x D (㎜, Inch): 328 x 128 x 731 ㎜ (in Operation) / 328 x 128 x 390 ㎜ (Footprint) 12.9 x 5.0 x 28.7 Inch / 12.9 x 5.0 x 15.4 Inch

Noise: Under 60 db

Weight: Approx 4.9 ㎏ (10.8 Lbs)


Accessories: CD-ROM(User Manual, USB Driver, API, Diagnostic utility software), Power cable(AC Adaptor) , USB cable
