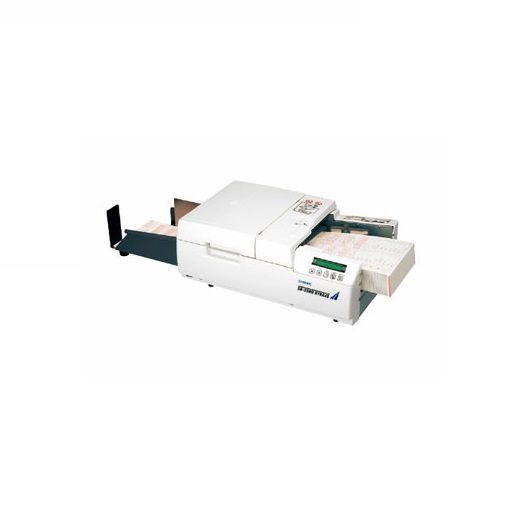

SEKONIC SR-3500HYBRID 光学指示读出器

Mark Reading Sensor

        Read Head: Photo reflector

        Reading side: Single side(Standard); Double side (Option)

        Light source: Infra-Red Ray (Standard); Visible Red Ray (Option)

        Mark Implements: Pencil (Standard); Pencil + Pen (Option)

        Read head Channel: 1/6” (48 columns); 0.2” (40 columns)

        Mark Shapes: Rectangle, Ovals, and Circles

Image Reading Sensor

        Sensor :CIS (Contact Image Sensor)

        Width capacity: 237 ㎜

        Reading side: Double sides

        Color*: Grey-scale, Color

        Optical dpi*: Up to 300dpi

        Light color: Red, Green, Blue(620, 530, 467nm)

        Output file*: JPEG, BMP, TIFF, PING, GIF

Connect with PC (Interface): USB(Ver.2.0); RS-232C

Compatible: SR-601/607, SR-2300, SR-3500

Display

        Panel: 40 characters (20 x 2 lines)

        Control: Button 5 buttons

Form Capacity

        ADF (Hopper): Up to 500 sheets

        Capacity Exit Bin: Up to 500 sheets

Scanning

        Form Width: 63.5~228.6 ㎜(2.5” ~9” )

        Form Length: 110 ~355.6 ㎜(4.3” ~14” )

        Number of Rows: Up to 107 Rows

        Mark Position: Up to 5,136 Mark Positions

(48 columns); Up to 4,280 Mark Positions

(40 columns)

        Throughput speeds: OMR only: 3,500 sheets/h

                           Color/Gray-scale(100dpi): 2,200sheet/h

        Thickness: OMR: 72~135kg(84 – 157g/m2)

                   Image: 55~135kg(64 – 157g/m2)

Power

        Volt. / Relatives: AC100V~240V / 50~60Hz

Conditions

        Temp / Humid: 5~35℃ / 30~80%

Dimensions W× H× D(mm, Inch): 365 x 227 x 575mm (14.4” x 9” x 22.6” )

Weight: 18.3kg(40.3lb)

Accessories: CD-ROM (User Manual, USB Driver, API, Diagnostic utility

software), Power cable (AC Adaptor), USB cable
