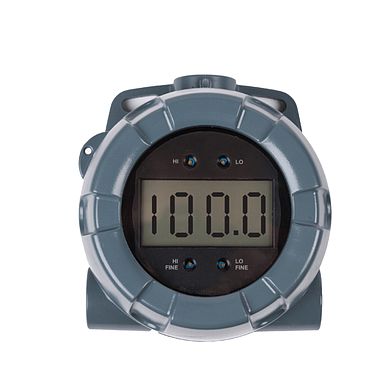

Sensorex LPM100环路供电4-20mA显示器



Accuracy: ±0.1% of full span ±1 count

Temperature Range: -40 to 75°C

Calibration Range: 4 mA input: -1000 to +1000; 20 mA between 20 and 2000 counts greater than 4 mA display. Two point linear display span

Input: 4-20mA

Enclosure: NEMA 4X, IP65 plastic field enclosure

Display: 3½ digit LCD, 1″ (25.4 mm); -1,999 to 1,999

Maximum Voltage Drop: 4 VDC @ 20 mA with loop-powered back-light

Input Overload: Over current protection to 2 A max
