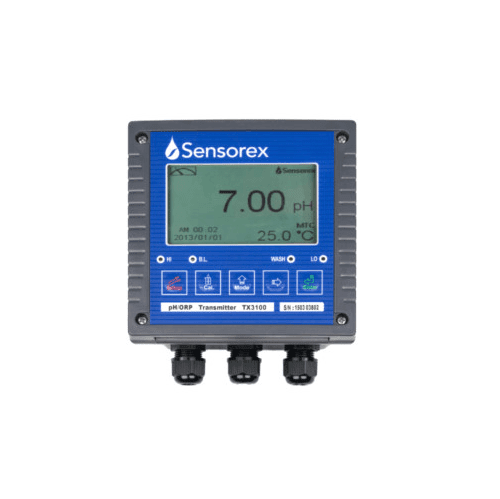

SENSOREX TX3100 pH/ORP变送器/控制器

Measurement Modes: pH/ORP/Temp

Range: pH: -2.00~16.00 pH

            ORP: -1999~1999 mV

            TEMP: -30.0~130.0˚C

Resolution: pH: 0.01 pH

                   ORP: 1 mV

                   TEMP: 0.1˚C

Accuracy: pH: ±0.01 pH (±1 Digit)

                ORP: ±0.1% (±1 Digit)

                TEMP: ±0.2˚C (±1 Digit) with temperature error correction

Temperature: NTC30K / PT1K Auto temperature compensation

Compensation: Manual temperature compensation

Calibration Mode: TECH, NIST, Any Buffer, up to three point calibration

Ambient Temp.: 0~50˚C

Storage Temp.: -20~70˚C

Input Impedance: > 10^12Ω

Display: Large LCM with backlight sensor and contrast adjustment; Text mode

Language: Available in English, Traditional Chinese, Simplified Chinese

Analog Output 1: Isolated DC 0/4~20 mA corresponding to main measurement, Max load 500Ω

Analog Output 2: Isolated DC 0/4~20mA corresponding to temperature, Max load 500Ω

Settings:

- Contact: RELAY ON/OFF contact, 240VAC 0.5A Max (recommended)

- Activate: Hi/Lo, Hi/Hi, Lo/Lo, selectable two limited programmable, ON/OFF

Voltage Output: DC±12V, 1W Max for PH-300T (Optional)

Protection: IP65

Power Supply: 100V~240VAC±10%, 6W Max, 50/60Hz

Dimensions: 144 mm × 144 mm × 115 mm (H×W×D)

Cut off Dimensions: 138 mm × 138 mm (H×W)

Weight: 0.8 kg
