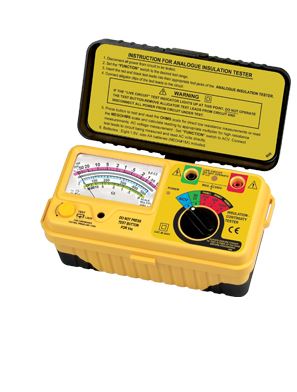

SEW 1180IN 指针式1KV绝缘测试仪

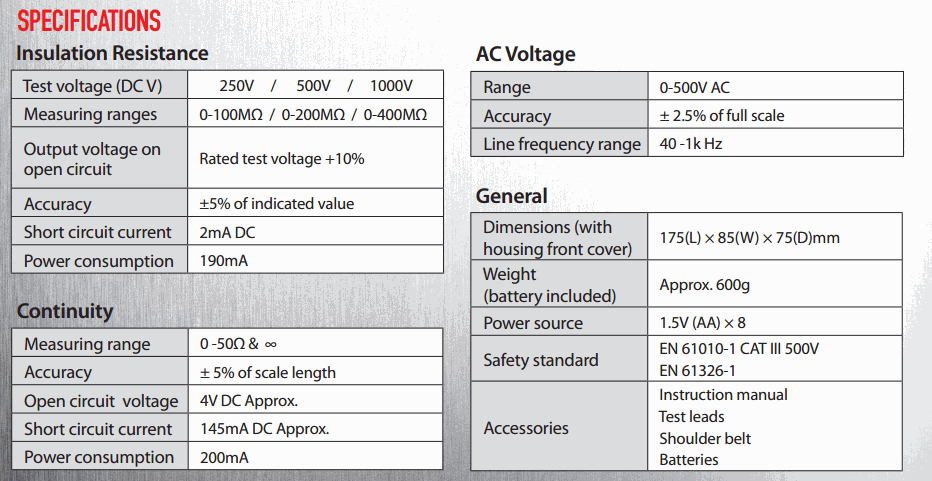

Test voltage (DC V) 250V / 500V / 1000V
Measuring ranges 0-100MΩ / 0-200MΩ / 0-400MΩ
Output voltage on
open circuit
Rated test voltage +10%
Accuracy ±5% of indicated value
Short circuit current 2mA DC
Power consumption 190mA

 Datasheet
