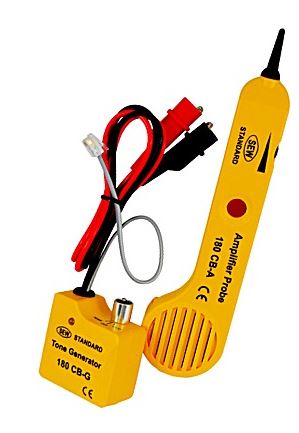

SEW 180 CB 缆线追踪器

Amplifier Probe:
  Frequency: 1Hz~12kHz
  Receiver distance: < 50cm
  Sensitivity control
  Probe tip     Fixed
  Power source: 9V(6F22) × 1
  Dimensions: 230(L) × 56(W) × 27(D)mm
  Weight: Approx. 125g (battery included)
Tone Generator:
  Wave form: Square Wave
  Frequency: 1kHz±15%
  Over voltage protection: 100V DC
  Single tone
  Alternating tone: Fast
  Connection: RJ11 connector, alligator clip x 2,
  RJ45 connector (optional)
  Power source: 9V(6F22) × 1
  Dimensions: 64(L)×58(W)×34(D)mm
  Weight (battery included): Approx. 120g
General:
  Operating temp & humidity: 0˚~40˚C, 80% Max.
  Storage temp & humidity: -10˚~50˚C, 80% Max.
  Safety standard: EN 61326-1  EN 55011  EN 6100-4-2  EN 6100-4-3
