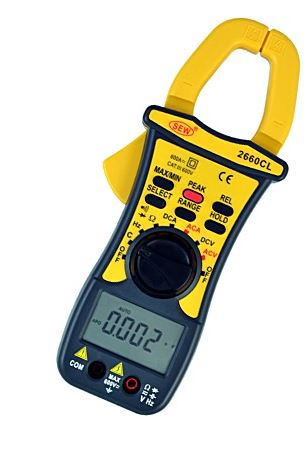

SEW 2660 CL 数字式钳形表(600A)

  • 制造商: SEW
    Model: 2660 CL
    来源: Taiwan
    • 报价要求 报价要求
  • Price (exclude tax) 2,232,500 VND
    Price (include tax) 2,455,750 VND
  • 现货: 1
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




ACA: 400A,600 /±(1.5%rdg+4dgt)
DCA: 400A,600 /±(1.5%rdg+4dgt)
DCV: 600V /±(1.0%rdg+3dgt)
ACV: 600V /±(1.5%rdg+3dgt)
Ω: 40MΩ /±(1.5%rdg+3dgt)
Continuity:yes
F: 40MHz /±(0.5%rdg+2dgt)
Test Diode: yes
C: 40mF /±(3.0%rdg+4dgt)
Conductor size: 35mm Max.
Low battery Indication: yes
Dimensions:210(L) × 90(W) × 40(D)mm
Weight:330g
Power source: 9V(6F22) × 1

Details



列印
  FEATURES
● 4000 counts.
● Voltage measurement, current measurement, resistor
   measurement, frequency counter, capacitor measurement.
● Bargraph indication.
● Range change function.
● Data hold function freezes the reading.
● REL function.
● Peak function.
● VAHz mode measures frequency in ACV and ACA mode.
● Diode measurement.
● Max / Min function.
● Continuity check.
● Low battery indication.
● Auto Power Off (APO) function.
● Safety design throughout with no exposed metal
   parts, shielded banana plugs and recessed input terminals.

  SPECIFICATIONS

 DC Voltage

  Ranges

  Resolution

  Accuracy

  400mV

  0.1mV

  ±(1.0%rdg+3dgt)

  4V

  1mV

 40V

  10mV

 400V

  100mV

  600V

  1V

 Overload protection : 650V DC
 AC Voltage

  Ranges

  Resolution

  Accuracy

  400mV

  0.1mV

 ±(0.5%rdg+3dgt)

  4V

  1mV

 ±(1.5%rdg+3dgt)

 40V

  10mV

 400V

  100mV

 600V

  1V

 Overload protection : 650V AC rms
 Frequency Response : 0~400mV at 40Hz~120Hz
                                              4V~600V at 40Hz~500Hz
 AC Current

Ranges

  Resolution

  Accuracy

400A

 0.1A

 ±(1.5%rdg+4dgt)

600A

 1A

 ±(2.0%rdg+4dgt)

 Frequency Response: 40Hz~500Hz
 DC Current

Ranges

  Resolution

  Accuracy

400A

 0.1A

 ±(1.5%rdg+4dgt)

600A

 1A

 ±(2.0%rdg+4dgt)

 Resistance

  Ranges

  Resolution

  Accuracy

 400

0.1

±(1.5%rdg+3dgt)

4k

1

40k

10

400k

100

4M

1k

40M

10k

±(2.0%rdg+4dgt)

 Continuity

Ranges

Audible threshold

400

Less than 35

 Frequency

  Ranges

  Resolution

  Accuracy

 4kHz

1Hz

±(0.3%rdg+2dgt)

40kHz

10Hz

400kHz

100Hz

4MHz

1kHz

±(0.4%rdg+2dgt)

40MHz

10kHz

±(0.5%rdg+2dgt)

 Diode

Ranges

  Resolution

  Accuracy

2V

1mV

±(1.5%rdg+3dgt)

 Capacitor

  Ranges

  Resolution

  Accuracy

4nF

1pF

±(2.5%rdg+4dgt)

40nF
