- 2 ranges for selection ( 2 function buttons )
LOW : 50V~1.5kV

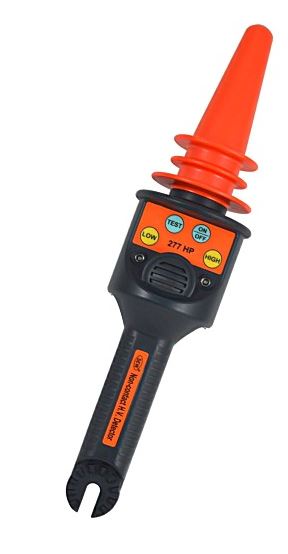

Press the LOW button, 277 HP is ready for low voltage detection.
HIGH : 1.5kV~132kV
Press the HIGH button, 277 HP is ready for high voltage detection.
- Power consumption:
Off : Less than 5uA
Low voltage detection mode: Less than 40mA
High voltage detection mode: Less than 40mA
- Circuit test function
Press the Test button to make sure the whole circuit is working well
before testing actual high voltage circuits.
Dimensions: 318(L) x 75(W) x 71(D)mm
Weight: 227g
Power source: 9V(6F22) x 1
Detail
|
FEATURES |
● 2 ranges for selection ( 2 function buttons ) LOW : 50V~1.5kV Press the LOW button, 277 HP is ready for low voltage detection. HIGH : 1.5kV~132kV Press the HIGH button, 277 HP is ready for high voltage detection. ● Power consumption: Off : Less than 5uA Low voltage detection mode: Less than 40mA High voltage detection mode: Less than 40mA ● Circuit test function Press the Test button to make sure the whole circuit is working well before testing actual high voltage circuits. ● Optional accessory: HS-175 Telescopic hot stick (triangle-type) HS-120 Hot stick
|
|
SPECIFICATIONS |
Operating temperature |
0°C~40°C |
Dimensions |
318(L) x 75(W) x 71(D)mm |
Weight (battery included) |
Approx. 227g |
Power source |
9V(6F22) x 1 |
Safety standards |
EN 61326-1 EN 61000-4-2 EN 61000-4-3 |
|
|
|
|
|
