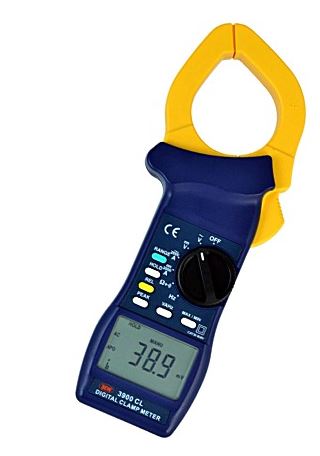

SEW 3900 CL Clamp Meter (2000A)

制造商: SEW
Model: 3900 CL
联系
现货: 1 个
- 报价要求
参考校准-检定服务与维修服务

热线: (+84) 968060220
电话: +84 (24) 62923267

技术规格
制造商消息

ACA:400.0/2000A /±(1.5%rdg+4dgt)
ACV: 400.0mV,4.000/40.00/400.0/750V /±(1.0%rdg+3dgt)
DCA: 400.0/2000A /±(1.5%rdg+4dgt)
DCV: 00.0mV/4.000/40.00/400.0/1000V /±(0.75%rdg+2dgt)
Ω + Continuity:
400.0Ω/4.000/40.00/400.0kΩ/4.000MΩ / ±(1.5%rdg+3dgt)
40.00MΩ ±(2.0%rdg+4dgt)
Hz: 4.000/40.00/400.0kHz/4.000/40.00MHz/ ±(1.0%rdg+2dgt)
Conductor size: 55mm Max.
Dimensions: 265(L) × 100(W) × 42(D)mm
Weight: 520g
Power source: 9V(6F22) × 1

Details

FEATURES

● 4000- count LCD.
● Full automatic measurement.
           ◎ Voltage measurement.
           ◎ Current measurement.
           ◎ Resistor measurement.
           ◎ External frequency measurement.
● Range change function.
● Data Hold function freezes the reading.
● REL function.
● Peak function.
● VAHz mode measures frequency in ACV and ACA mode.
● Max/Min function.
● Continuity check.
● Low battery indication.
● Auto Power Off (APO) function.
● Safety design throughout with no exposed metal parts, shielded
   banana plugs and recessed input terminals.

SPECIFICATIONS

AC A	400.0/2000A (40~500Hz) 0~1500A ±(1.5%rdg+4dgt) 1500A~2000A ±(2.5%rdg+4dgt)
AC V	400.0mV ±(1.5%rdg+3dgt) 4.000/40.00/400.0/750V ±(1.0%rdg+3dgt) 40~500Hz
DC A	400.0/2000A 0~1500A ±(1.5%rdg+4dgt) 1500A~2000A ±(2.5%rdg+4dgt)
DC V	400.0mV/4.000/40.00/400.0/1000V ±(0.75%rdg+2dgt)
Ω + Continuity	400.0Ω/4.000/40.00/400.0kΩ/4.000MΩ ±(1.5%rdg+3dgt) 40.00MΩ ±(2.0%rdg+4dgt)
Hz	4.000/40.00/400.0kHz/4.000/40.00MHz ±(1.0%rdg+2dgt)
Capacitor	──
Bargraph	ˇ
Display	3¾ (4000 counts)
Auto-ranges	ˇ
Data hold	ˇ
Low battery indication	ˇ
Auto power-off	ˇ
Max/Min. Mode	ˇ
Relative mode	ˇ
Conductor size	55mm Max.
Operating temperature & humidity	0ºC ~ 40ºC at < 80% RH
Dimensions	265(L) × 100(W) × 42(D)mm
Weight (battery included)	Approx. 520g
Power source	9V(6F22) × 1
Safety standard	EN 61010-1 CAT III 600V EN 61010-2-32 EN 61326-1
