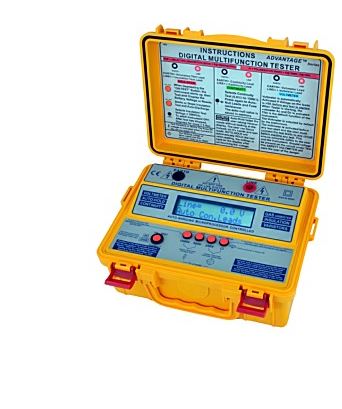

SEW 4102 MF 数字多功能绝缘测试计(1000V,8GΩ)

Test voltage (DC V) : 250V / 500V / 1000V
 Output voltage @ 1mA : Rated test Voltage +10% Max
 Measuring ranges : 0.2M~2G / 0.2M-4G / 0.2M-8GΩ
 Accuracy : 0.2M~4GΩ : ±3%rdg
 4GΩ~8GΩ : ±5%rdg
Continuity Test
 Measuring ranges : 0.01-1999Ω
 Accuracy : 0.01-100Ω : ±1.0%rdg
 100-300Ω : ±1.5%rdg
 300-1999Ω : ±2.0%rdg
 Voltmeter
 AC voltage (Auto) : 0-700V
 DC voltage (Auto) : 0-950V
 Accuracy : ±1.5% rdg
 Resolution : ±1V
MOV Test & GAS Arrester Test
 Test voltage  5-1020Vdc
 Voltage result accuracy  ±3% rdg
 Voltage result resolution  ±2 counts
Protections
 Over load : 700V (between all terminals)
 Over voltage : Class III-700V towards ground
General
 With PI and DAR : test function 10Min
 Load battery test current : About 300mA
 Dimensions : 250(L) × 190(W) × 110(D)mm
 Weight (battery included) :  Approx 1460g.
 Power source : 1.5V(AA) × 8
 Safety standard : EN 61010-1 CAT III 600V
 EN 61326-1
Accessories : Instruction manual,Test leads Shoulder belt, Batteries

Details



FEATURES
● Measures Insulation Resistance, voltage (AC-DC) measurements
● Automatic hold facility.
● Continuity test with a short circuit current of minimum 200mA.
● MOV and Gas Arrester Testing.
● Energy conservation is feature.
● EnerSave™ limits the test duration to about 10 Seconds to save energy.
● No moving parts. All calibration are saved internally in a non volatile memory.
● Easy calibration at any facility around the world.
● Low cost maintenance, calibration, and ownership.
● Complies to all the latest regulations, including UK.

  SPECIFICATIONS

Insulation Test
 Test voltage (DC V)  250V / 500V / 1000V
 Output voltage @ 1mA  Rated test Voltage +10% Max
 Measuring ranges  0.2M~2G / 0.2M-4G / 0.2M-8G
 Accuracy  0.2M~4G : ±3%rdg
 4G
~8G : ±5%rdg
 When voltage is constant,
 Current is limited at
 1.2mA
 Short circuit current  4mA Max.
Continuity Test
 Measuring ranges  0.01-1999
 Accuracy  0.01-100 : ±1.0%rdg
 100-300
 : ±1.5%rdg
 300-1999
 : ±2.0%rdg
 Short circuit current  >220mA
 Open circuit voltage  5V dc
 Resolution  ±2 counts
Voltmeter
 AC voltage (Auto)  0-700V
 DC voltage (Auto)  0-950V
 Accuracy  ±1.5% rdg
 Resolution  ±1V
MOV Test & GAS Arrester Test
 Test voltage  5-1020Vdc
 Voltage result accuracy  ±3% rdg
 Voltage result resolution  ±2 counts
Protections
 Over load  700V (between all terminals)
 Over voltage  Class III-700V towards ground
 Fuse  500mA 250V, (5 × 20mm), HBC, Fast Blow
General
 Display  2 lines × 16 characters LCD
 Auto-null threshold  5
 Buzzer threshold  3
 Fast test  10Sec
 Long test  60Sec
 With PI and DAR
 test function
 10Min
 Load battery test current  About 300mA
 Operating temperature  0°C to 40°C not in full sun
 Storage temperature  -10°C to 50°C
 Dimensions  250(L) × 190(W) × 110(D)mm
 Weight (battery included)  Approx 1460g.
 Power source  1.5V(AA) × 8
