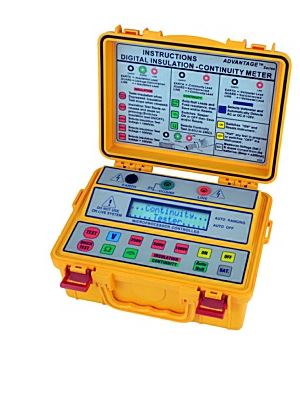

SEW 4153 IN 数字多功能绝缘测试计(1000V,8GΩ)

  • 制造商: SEW
    Model: 4153 IN
    • 报价要求 报价要求
  • 4,841,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化
Model: 4153 IN
Manufacturer: SEW
Origin: Taiwan
Warranty: 12 months
Test voltage (DC V) and Measuring ranges: 250V / 0.2M~2GΩ, 500V /  0.2M-4GΩ, 1000V / 0.2M-8GΩ
 Output voltage @ 1mA Rated test Voltage +10% Max
 Accuracy :0.2M~4GΩ : ±3%rdg ,4GΩ~8GΩ : ±5%rdg
 Continuity
 Measuring range:0.01-1999Ω
 Accuracy:0.01-100Ω : ±1.0%rdg, 100-300Ω : ±1.5%rdg, 300-1999Ω : ±2.0%rdg
  Resolution : ±2 counts
Voltmeter
 AC voltage (Auto): 0-700V
 DC voltage (Auto):0-950V
 Accuracy : ±1.5% rdg
  Resolution : ±1V
Protections
 Over load :700V
 (between all terminals)
  Load battery test current: About 300mA
 Dimensions: (with housing front cover): 250(L) × 190(W) × 110(D)mm
 Weight
 (battery included):Approx. 1460g
 Power source 1.5V (AA ) × 8
 Safety standard : EN 61010-1 CAT III 600V, EN 61326-1
Accessories : Instruction manual, Test leads, Shoulder belt, Batteries





详细



FEATURES
● Microprocessor-controlled.
● Measures Insulation Resistance, voltage (AC-DC) measurements
   with automatic hold facility, diode, ohm, and continuity with a short
   circuit current of minimum 220mA.
● Auto-off function.
● Energy conservation feature.
● Ener-Save™ limit the test duration to about 10 Seconds.
● Quick Test and EnerSave™ are unique features. Both saves energy.
● No moving parts. All calibration are saved internally in a non volatile memory.
● Easy calibration at any facility around the world.
● Operates with rechargeable batteries, alkaline or low cost general purpose batteries.
● Low cost maintenance, calibration, and ownership.
● Complies to all the latest regulations, including UK.

  SPECIFICATIONS

Insulation  Test
 Test voltage (DC V)
 and Measuring ranges
 250V / 0.2M~2G
 500V /  0.2M-4G
 1000V / 0.2M-8G
 Output voltage @ 1mA   Rated test Voltage +10% Max
 Accuracy  0.2M~4G : ±3%rdg
 4G
~8G : ±5%rdg
 When voltage is constant,
 Current is limited at
 1.2mA
 Short circuit current  4mA Max.
Continuity
 Measuring range  0.01-1999
 Accuracy  0.01-100 : ±1.0%rdg
 100-300
 : ±1.5%rdg
 300-1999
 : ±2.0%rdg
 Short circuit terminal
 current
 >220mA
 Open circuit terminal
 voltage
 5V dc
  Resolution  ±2 counts
Voltmeter
 AC voltage (Auto)  0-700V
 DC voltage (Auto)  0-950V
 Accuracy  ±1.5% rdg
  Resolution  ±1V
Protections
 Over load   700V
 (between all terminals)
 Over voltage  Class III-700V towards ground
  Fuse  500mA 250V, (5 × 20mm), HBC, Fast Blow
General
 Display  2 lines × 16 characters LCD
 Auto-null threshold  5
 Buzzer threshold  3
 Fast test  10Sec
 Long test  60Sec
 With PI and DAR
 test function
10Min
 Load battery test current  About 300mA
 Operating temperature  0°C to 40°C not in full sun
 Storage temperature  -10°C to 50°C
 Dimensions
 (with housing front cover)
 250(L) × 190(W) × 110(D)mm
 Weight
 (battery included)
  Approx. 1460g
 Power source  1.5V (AA ) × 8
 Safety standard  EN 61010-1 CAT III 600V
 EN 61326-1
