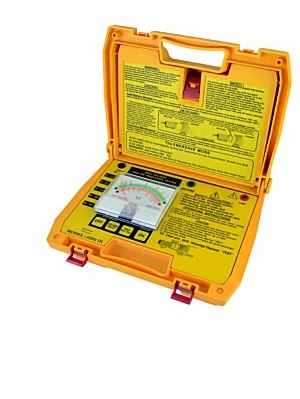

SEW 6201 IN 指针高电压绝缘测试计

Test voltage (DC V)  5000V  10000V
 Measuring ranges  0-200GΩ  0-400GΩ
 Accuracy  ±5% of full scale
 Live warning  >500V AC
 Operating-temperature  0°C to 40°C
 Operating-humidity  85% Max. relative humidity
 Dimensions  330(L) × 260(W) × 160(D) mm
 Weight
 (battery included)  Approx. 3500g
 Power source  1.5V “C”× 8 Alkaline batteries

Details

 Download datasheet

 FEATURES
● Microprocessor-controlled.
● High quality Taut Band movement.
● Two insulation test voltages.
● Insulation resistance, auto ranging on all ranges.
● Low Battery LED indication.
● Beeper warning of external voltage.
● Fully protected : crow bar.
● Housed in carry case.

  SPECIFICATIONS






 Test voltage (DC V)  5000V  10000V
 Measuring ranges  0-200GΩ  0-400GΩ
 Accuracy  ±5% of full scale
 Live warning  >500V AC
 Operating-temperature  0°C to 40°C
 Operating-humidity  85% Max. relative humidity
 Dimensions  330(L) × 260(W) × 160(D) mm
 Weight
 (battery included)
 Approx. 3500g
 Power source  1.5V “C”× 8 Alkaline batteries
