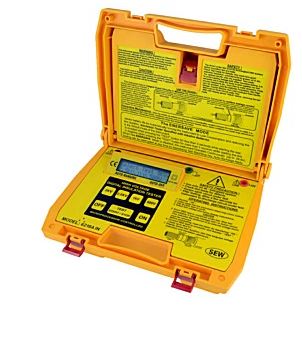

SEW 6210A IN 绝缘测试仪(5KV,250GΩ)

Test voltage (DC V): 0.5kV  / 1kV/ 2.5kV/ 5kV
Measuring ranges: 0-25GΩ / 0-50GΩ / 0-125GΩ / 0-250GΩ
Accuracy:±3% rdg
Dimensions: 330(L) × 260(W) × 160(D)mm
Weight: 3500g
Power source:1.5V(AA) × 8

Detail
  FEATURES
● Microprocessor-controlled.
● Four insulation test voltages.
● Insulation resistance; auto ranging on all ranges.
● Bargraph indicates test voltage; rise and decay can be observed during tests.
● Visual and audible warning if external voltage is present.
● Fully protected: crow bar.
● Carry case.
● EEPROM calibration.

  SPECIFICATIONS


 Test voltage (DC V)  0.5kV  /    1kV    /    2.5kV    /    5kV
 Measuring ranges
 (Auto-Ranges)
 0-25GΩ / 0-50GΩ / 0-125GΩ / 0-250GΩ
 Accuracy  ±3% rdg
 Output power limit  50uA to 100uA (1W)
 Live warning  > 500V AC
 Operation
 temperature
 0°C to 40°C
 Operation-humidity  85% Max. relative humidity
 Dimensions  330(L) × 260(W) × 160(D)mm
 Weight
 (battery included)
 Approx. 3500g
 Power source  1.5V “C”× 8 Alkaline batteries
 Safety standard  EN 61010-1
 EN 61326-1
