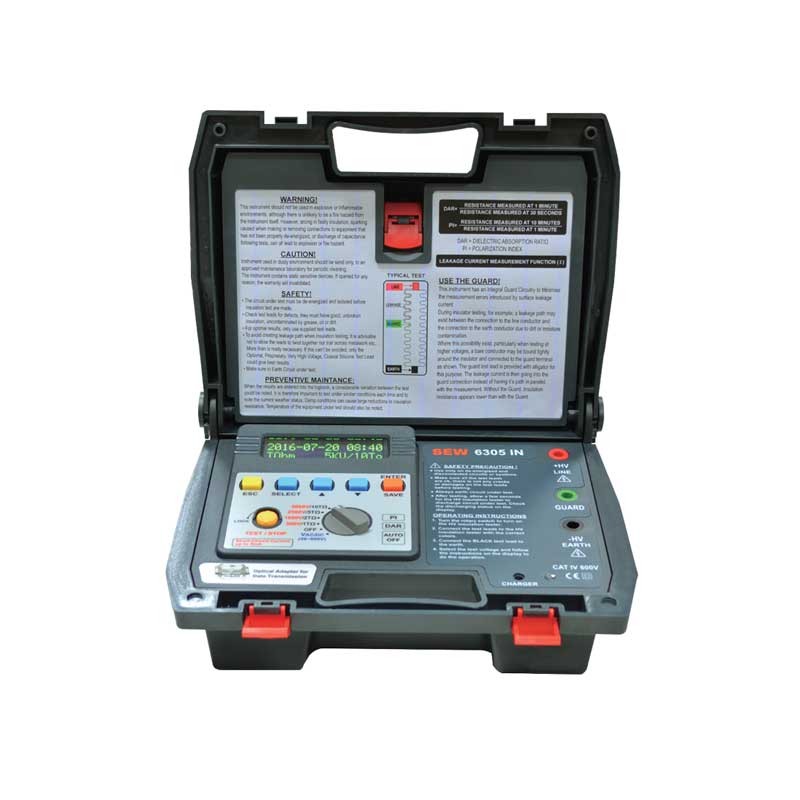

SEW 6305 IN HIGH VOLTAGE INSULATION TESTER (5kV,10TΩ,Rechargeable battery)

Test Voltage: 500V, 1000V, 2500V, 5000V
Insulation resistance: 1TΩ / 500V; 2TΩ / 1000V; 5TΩ / 2500V; 10TΩ / 5000V
0~100GΩ / 500V; 0~200GΩ / 1000V; 0~500GΩ / 2500V; 0~1000GΩ / 5000V: ±(5%rdg+5dgt)
100G~1TΩ / 500V; 200G~2TΩ / 1000V; 500G~5TΩ / 2500V; 1000G~10TΩ / 5000V: ±12%rdg
Resolution: 1000MΩ: 1MΩ; 10GΩ: 0.01GΩ; 100GΩ: 0.1GΩ; 1TΩ: 1GΩ; 10TΩ: 10GΩ
Short circuit current: up to 5mA
PI (Polarization Index): V
DAR (Dielectric Absorption Ratio): V
Voltmeter: ACV: 30~600V (50/60Hz); DCV: 30~600V; Accuracy: ±(2.0%rdg + 3dgt); Resolution: 1V
Current measurement: 0.5nA ~ 0.55mA
(Depending on the insulation resistance)
Power source:Rechargeable battery
Dimensions: 330(L) × 260(W) × 160(D)mm
Weight: Approx. 3760g
