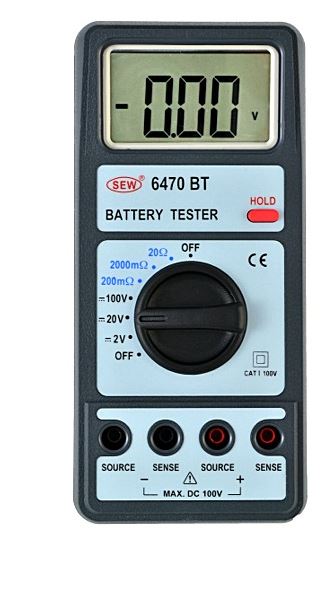

SEW 6470 BT 电池电量测试仪 (0-100V, 0-20 Ohm)

- DC Voltage
+ Range: 2V, 20V, 100V
+ Resolution: 1mV, 10mV, 100mV
+ Accuracy:±(1%rdg+1dgt)
- Resistance
+ Range    200mΩ, 2000mΩ, 20Ω
+ Resolution: 0.1mΩ, 1mΩ, 10mΩ
+ Accuracy:±(3%rdg+3dgt)
Dimensions: 192(L) × 88.6(W) × 45.2(D)mm
Weight: 360g
Power source: 9V(6F22)  × 1

Detail



  FEATURES
● 2000 counts.
● DC Voltage measurement.
● 4-wire resistance measurement.
● Data hold function.
● Low battery indication.
● 9V DC power supply.
● Measure battery types: Li-ion, Ni-Cd, Ni-MH
● Simple operation.
● Lead resistance and contact resistance eliminated.

  SPECIFICATIONS

  DC Voltage
  Range

  2V

  20V

  100V

  Resolution

  1mV

  10mV

  100mV

  Accuracy

  ±(1%rdg+1dgt)

  ±(1%rdg+1dgt)

  ±(1%rdg+1dgt)

  Resistance
  Range

200m

2000m

20

  Resolution

0.1m

1m

10m

  Accuracy

±(3%rdg+3dgt)

±(3%rdg+3dgt)

±(3%rdg+3 dgt)

  General
  Low battery
  indication
  "  " sign appears on the display when the battery voltage drops
  below accurate  operating level.
  Dimensions   192(L) × 88.6(W) × 45.2(D)mm
  Weight
  (battery included)
  Approx. 360g
  Power source   9V(6F22)  × 1
  Safety standard   EN 61010-1 CAT I 100V
  EN 61326-1
