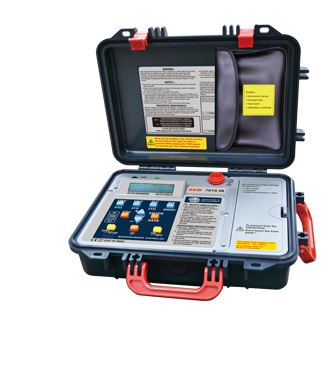

SEW 7015 IN 数字高压绝缘电阻测试仪 (15KV)

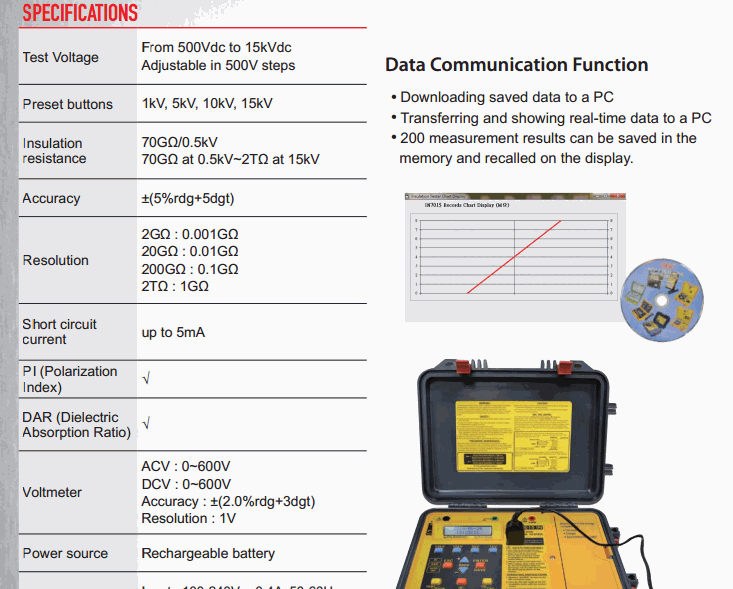

SPECIFICATIONS
Test Voltage From 500Vdc to 15kVdc
Adjustable in 500V steps
Preset buttons 1kV, 5kV, 10kV, 15kV
Insulation
resistance
70GΩ/0.5kV
70GΩ at 0.5kV~2TΩ at 15kV
Accuracy ±(5%rdg+5dgt)
Resolution
2GΩ : 0.001GΩ
20GΩ : 0.01GΩ
200GΩ : 0.1GΩ
2TΩ : 1GΩ
Short circuit
current up to 5mA
PI (Polarization
Index) √
DAR (Dielectric
Absorption Ratio) √
Voltmeter
ACV : 0~600V
DCV : 0~600V
Accuracy : ±(2.0%rdg+3dgt)
Resolution : 1V
Power source Rechargeable battery
AC Adapter Input : 100-240V~, 0.4A ,50-60Hz
Output : 24V ... 0.62A
Dimensions 430(L) x 324(W) x 127(D)mm
Weight Approx : 5kg
Accessories
Instruction manual
Test leads (AL-58, AL-30AG,
AL-30HB, AL-23CA)
Data transmission cable CA-232
Compact disk (CD) for PC interface
Alligator clip (AL-23CA)
Charger (CHA-7010)
Test report
