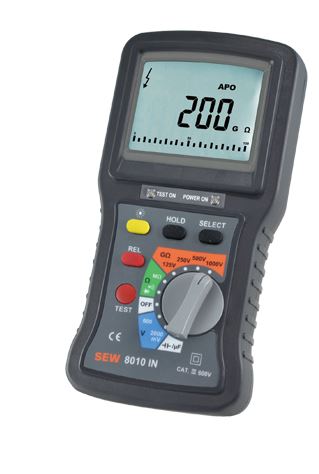

SEW 8010 IN 数位绝缘测试计

  • 制造商: SEW
    Model: 8010IN
    • 报价要求 报价要求
  • Price (exclude tax) 4,300,500 VND
    Price (include tax) 4,730,550 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Insulation Resistance:
  Test voltage: 125V / 250V / 500V / 1000V
  Output voltage on open circuit: Rated test voltage +10%
  Measuring ranges: 0-25GΩ/0-50GΩ/0-100GΩ/0-200GΩ
  Accuracy: ± (3%rdg+5dgt)
  Output short-circuit current: ≥ 1.0mA
AC/DC Voltage:
  Measuring ranges: 200.0mV / 2000mV / 200.0V / 600V
  Accuracy: ± (3%rdg+5dgt)
Resistance:
  Measuring ranges: 20.00kΩ/200.0kΩ/2000kΩ/20.00MΩ
  Accuracy: ± (3%rdg+3dgt)
Continuity:
  Measuring ranges: 20.00Ω / 200.0Ω / 2000Ω
  Buzzer: under 10Ω
  Open circuit voltage: 5V±1V
  Short circuit current: ≥ 210 mA
  Accuracy: ± (3%rdg+5dgt)
Capacitor:
  Measuring ranges: 200.0nF / 2000nF / 20.00uF
  Accuracy: ± (3%rdg+5dgt)
Safety standards: EN 61010-1 CAT III 600V, IEC 61557-1, IEC 61557-2, EN 61326-1
