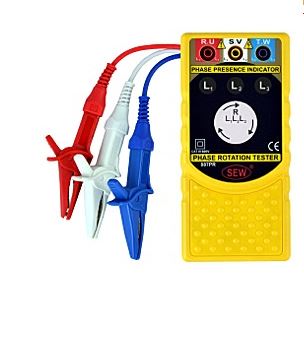

SEW 887 PR LCD相序指示器(接触型)

ELECTRICAL
 Determination of the Phase Presence
  Nominal Voltage for Phase Presence
  Indication (the voltage required for the
  LCD L1, L2, L3 indicators to come on)  From 40Vac to 500Vac.
  Frequency range   From 15Hz to 400Hz.

 Determination of the Phases Rotary Field Direction:
 Direction Indication by LCD Display(the
 voltage required to have the LCD
 Direction Arrows to indicates and the
 L1 L2 L3 or L3 L2 L1 indicators to show)   From 40 to 500Vac.
  Frequency range   From 15 Hz to 400Hz

   Dimensions   150(L) × 72(W) × 33.8(D)mm
 Material   Poly carbonate / ABS
  Weight
  (less Soft pouch)   Approx. 158.5g

Detail



FEATURES
● Indicates phase rotation.
● Indicates phase presence.
● No battery required.
● Phase rotation phase presence indicated on large
    liquid crystal display.
● Small, rugged enclosure.
● Color coded test leads.
● Phase presence indication from as low as 40Vac to
   as high as 500Vac.
● Fused.
● Lightweight, robust and compact.
● EN 61010-1 CAT III 500V
   EN 61010-2-032

  SPECIFICATIONS

 ELECTRICAL
 Determination of the Phase Presence
  Nominal Voltage for Phase Presence
  Indication (the voltage required for the
  LCD L1, L2, L3 indicators to come on)
 From 40Vac to 500Vac.
  Frequency range   From 15Hz to 400Hz.
 Determination of the Phases Rotary Field Direction:
 Direction Indication by LCD Display(the
 voltage required to have the LCD
 Direction Arrows to indicates and the
 L1 L2 L3 or L3 L2 L1 indicators to show)
  From 40 to 500Vac.
  Frequency range   From 15 Hz to 400Hz
 Protection
  Over load   700V(between all terminals)
  Over voltage  Class III - 700V
  towards ground
  Fuses   2 × 0.5A, 6 × 31mm,
  HBC, 600V Fast Blow
 General
  Current consumption   Max. 3mA
 MECHANICAL
  Dimensions   150(L) × 72(W) × 33.8(D)mm
 Material   Poly carbonate / ABS
  Weight
  (less Soft pouch)
  Approx. 158.5g
  Display   LCD
 ENVIRONMENTAL
  Operating temperature range   1°C to + 55°C not in full sun!!!
 Storage temperature   -20°C to + 70°C
