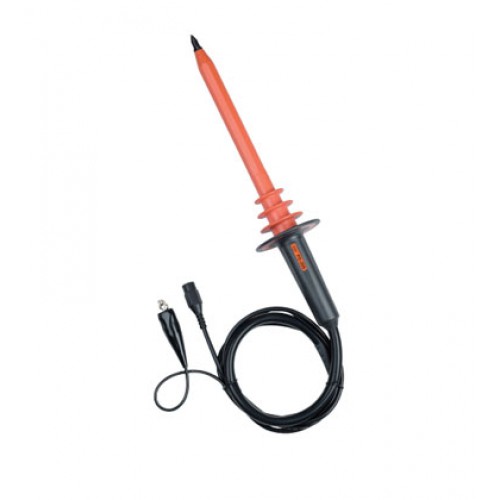

SEW PD-20S 高压探头（30kV DC，20kV AC）

Input impedance: 500 MΩ
Attenuation ratio: 1000 : 1
Accuracy:
DCV: (0 ~ 20kV) ± 1%,
DCV: (20kV ~ 30kV) ± 2%
AC:V (0 ~ 20kV) typically ± 5% at 50/60 Hz
Max. working voltage : 30kV DC or 20kV AC
Cable length: 1 m
Weight: Approx. 260g

Detail
列印
FEATURES
● Measures both AC and DC voltages with oscilloscopes.
● Are typically used to measure high voltages in TV sets, power
    supplies and instruments in laboratories.
● Lightweight and rugged.
● 2 available contact tips: round needle tip for normal use and a
    special flat spring-type for CRT anode.

SPECIFICATIONS

 Input impedance  500 MΩ
 Attenuation ratio  1000 : 1
 Accuracy  DCV (0 ~ 20kV) ± 1%,
 DCV (20kV ~ 30kV) ± 2%
 ACV (0 ~ 20kV) typically ± 5% at 50/60 Hz
 Max. working voltage  30kV DC or 20kV AC
 Operating temperature  0°C ~ 40°C
 Storage temperature  -10°C ~ 50°C
 Cable length  1 m
 Weight  Approx. 260g
 Safety standards  EN 61010-1  EN 61010-31
 EN 61326-1
Tags:High Voltage Probe testers SEW PD-20S (500M Ohm for scope30kV DC or 20kV AC)
