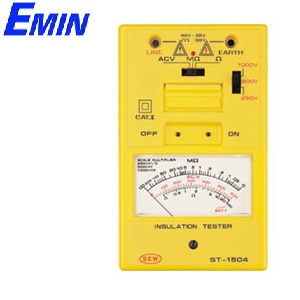

SEW ST-1504 指针式1KV绝缘测试仪(1kV,400MΩ)

Manufacturer: SEW
Made in Taiwan
Test voltage (DC V): 250V/ 500V/ 1000V
Measuring ranges: 0-100MΩ / 0-200MΩ / 0-400MΩ /± 5%
Short circuit terminal current: >1.0mA
Continuity: yes
Measuring AC Voltage: 0-500V AC/± 2.5%
Dimensions: 163(L) × 100(W) × 50(D)mm
Weight: 470g
Power source 1.5V (AA) × 6

Detail
SPECIFICATIONS

INSULATION RESISTANCE
Test Voltage (DC V) 250V/500V/1000V
Output Voltage on Open Circuit + 10%
Measuring Ranges (Mid-Scale Value) 0-100M Ohm (1M Ohm)/0-200M Ohm (2M Ohm)/0-400M Ohm (4M Ohm)
Accuracy +/- 5% of scale length
Short Circuit Current 2mA
Maximum Battery Current Approx. 60mA (250V), 80mA (500V), 150mA (1000AV)
CONTINUITY
Measuring Range 0-100 Ohm
Line Frequency Range 40-70Hz
Open Circuit Voltage 100mV
Short Circuit Current 23.5mA
Accuracy +/- 5% of scale length
AC VOLTAGE
AC Voltage Range 0-600V AC
Accuracy +/- 2.5% of full scale
GENERAL
Power Source 1.5V(SUM-3) x 6 Type AA
Dimensions 163(L) x 100(W) x 50(D)mm
Weight Approx. 470g (battery included)
