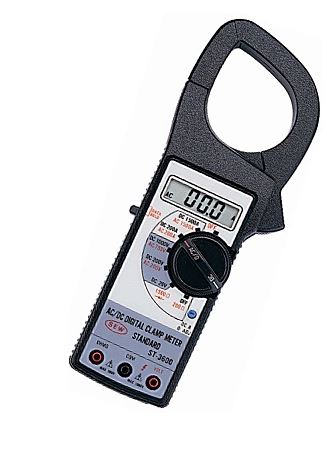

SEW ST-3600 数字式钳形表 (1500A)

制造商: SEW
Model: ST-3600
来源: Taiwan
联系
- 报价要求
参考校准-检定服务与维修服务

热线: (+84) 968060220
电话: +84 (24) 62923267

技术规格
制造商消息

ACA: 200 / 1500A /±(2.0%rdg+4dgt)
DCA: 200 / 1500A /±(2%rdg+4dgt)
DCV: 20 / 200 / 1000V /±(1%rdg+2dgt)
ACV: 200 / 750V/ ±(1.5%rdg+2dgt)
Ω: 200 / 1500Ω /±(1.5%rdg+2dgt)
Test Diode: yes
Conductor size: 55mm Max.
Dimensions:245(L) × 70(W) × 41.7(D)mm
Weight:480g
Power source: 9V(6F22) × 1

Details

FEATURES

● 3½ digit LCD with maximum reading of 1999.
● Over range indication : "1" is displayed on highest digit.
● Low battery indication: "B" sign appears on the display.
● Response time: approx. 1 second.
● Data hold: for all ranges

SPECIFICATIONS

AC A	200 / 1500A ±(2.0%rdg+4dgt) (40Hz-1kHz)
AC V	00 / 750V ±(1.5%rdg+2dgt) (40Hz-1kHz)
DC A	200 / 1500A ±(2%rdg+4dgt)
DC V	20 / 200 / 1000V ±(1%rdg+2dgt)
Ω	200 / 1500Ω ±(1.5%rdg+2dgt)
Diode check	0-1500mV ±(1.5%rdg+2dgt)
Buzzer	──
Conductor size	55mm Max.
Operating temperature	0ºC ~ 40ºC
Humidity	85% R.H.
Current consumption	Approx. 10mA
Dimensions	245(L) × 70(W) × 41.7(D)mm
Weight (battery Included)	Approx. 480g
Power source	9V(6F22) × 1
