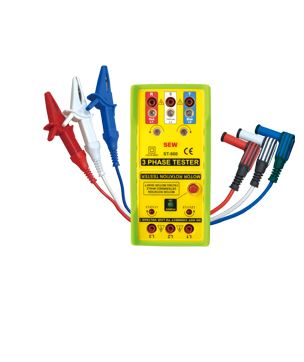

SEW ST-860 Phase Sequence Indicator (100-500 VAC)

Input voltage   100-500V AC
  Frequency range   45-70 Hz
  Circuit structure   All electronic (not mechanical)
  Power requirement   9V (6F22) × 1
  Power consumption   Consumption current approx. 14mA of motor rotation field tester
  AC power consumption   Approx. 7mA
  Dimensions   153(L) × 72(W) × 35(D)mm
  Weight
  (battery included)    Approx. 200g
  Safety standard   EN 61010-1 CAT III 500V
  EN 61326-1
Accessories Instruction manual,Test leads Soft pouch,Battery

Details



FEATURES
● Three functions in one unit: open phase, phase
    sequence and motor rotation indication.
● Large size alligator clips for easy clipping onto switch-
   boards terminals.
● Highly reliable.
● Identifies 3 phase sequence and open phase check.
● Ideal for installing conveyor lines, pump systems and
    interconnected drivers.

  SPECIFICATIONS


  Input voltage   100-500V AC
  Frequency range   45-70 Hz
  Circuit structure   All electronic (not mechanical)
  Power requirement   9V (6F22) × 1
  Power consumption   Consumption current approx. 14mA of motor
  rotation field tester
  AC power
  consumption
  Approx. 7mA
  Dimensions   153(L) × 72(W) × 35(D)mm
  Weight
  (battery included)
  Approx. 200g
  Safety standard   EN 61010-1 CAT III 500V
  EN 61326-1
