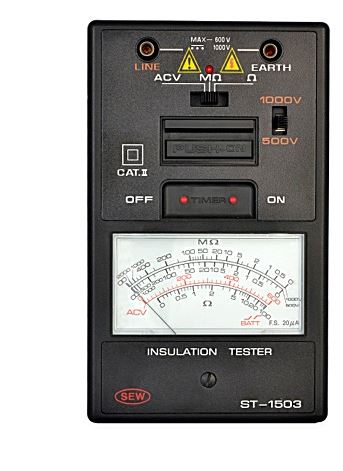

SEW ST-1503 指针式1KV绝缘测试仪(1kV,2000MΩ)

Test voltage (DC V): 500V/ 1000V
Measuring ranges: 0-1000MΩ / 0-2000MΩ /± 5%
Short circuit terminal current: >1.0mA
Continuity: yes
Measuring AC Voltage: 0-500V AC/± 2.5%
Dimensions: 163(L) × 100(W) × 50(D)mm
Weight: 440g
Power source 1.5V (AA) × 6

Detail
  FEATURES
● High quality Taut Band movement.
● Measures insulation(MΩ), continuity(Ω) and AC voltage.
● Instant operation is possible with a push button, convenient timer is
    provided with automatic power off after three to five minutes to save
    the battery power.
● LED (red) indication when testing insulation and continuity.
● Use of a high efficiency and accurate DC-DC converter.
● Most suitable for insulation resistance measurement of electrical
    household appliances, power line distribution and installation.

  SPECIFICATIONS

Insulation  Resistance
 Test voltage (DC V)  500V     /     1000V
 Output voltage on
 open circuit
 Rated test voltage +10%
 Measuring ranges
 (Mid-scale value)
 0-1000MΩ  /  0-2000MΩ
   (20MΩ)    /   (40MΩ)
 Accuracy  ± 5% rdg
 Short circuit current  1mA
 Maximum battery current  Approx.
 80mA (500V) / 150mA (1000V)
Continuity
 Measuring ranges  0-100Ω
 Line frequency range  40-70Hz
 Open circuit voltage  100mV
 Short circuit current  22.5mA
 Accuracy  ± 5% of scale length
AC Voltage
 Range  0-600V AC
 Accuracy  ± 2.5% of full scale
General
 Dimensions  163(L) × 100(W) × 50(D)mm
 Weight
 (battery included)
 Approx. 440g
 Power source  1.5V (AA ) × 6
 Safety standard  EN 61010-1 CAT II 600V
