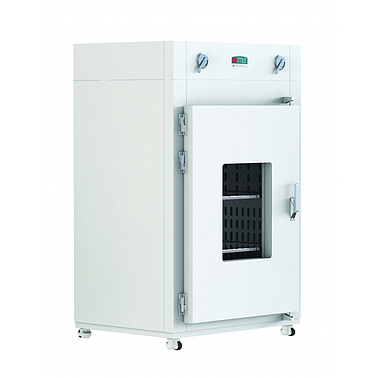

SH Scientific SH-IDO-864FG Industrial Drying Oven (380V, 3 phase, 864 Lit)

Air Circulation Forced

Temp Range: Max 250℃

Time Range: 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer

Temp & Time controller: Microprocess P I D Membrain Touch Digital controller

Heater control type: SSR contactless control type

Temp Accuracy & Stability: ±0.1℃

Heater capa: 9 KW

Dimension Internal: 900x800x1200(WxDxH)

Dimension External: 1160x960x1870

Capa: 864L

Moving Castor: F-M #80

Material Internal: Stainless Steel with Polishing Finished

Material External: Steel Plate SS 41 With Powder Heating Coated

Material Packing: Silicon Rubber Packing

Shelves Stainless Steel 3EA (basic spec.), 38EA (maximum)

Safety Device: Fan Motor Over Load Protection Device

Automatic reset function incoming power cut

Buzzer on When Set Time Arrived

Over Temp Protection Device

Power: 380V, 3 phase, 10.6 A
