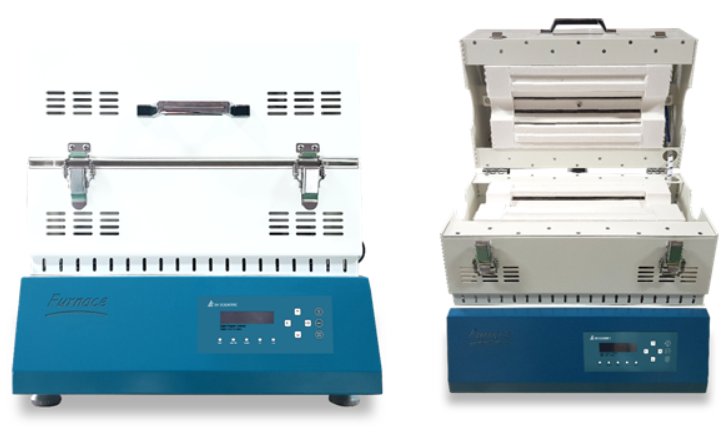

SH Scientific SH-FU-50STG 1200℃ 管式炉 (1200°C)

Temp Controller: Programmable Controller
Applicable Tube Diameter: 50Φ
Heater Capacity: 2000 W
Dimension Hot Zone: Length 300 mm
Dimension External (WxDxH): 502x357x517(mm); 19.76x14.06x20.35(inch)
Heater Element: KANTAL A-1
Insulation: Ceramic Board & Wool
Electrical Requirements 120V ,50/60Hz, 1Φ: 17.4 A
Electrical Requirements 230V ,50/60Hz, 1Φ: 9.1 A
Max Temp: 1200°C (2192°F)
Weight: 27 Kg
Electrical Requirements 230V ,50/60Hz, 3Φ: N/A
Electrical Requirements 380V ,50/60Hz, 3Φ: N/A

Datasheet
