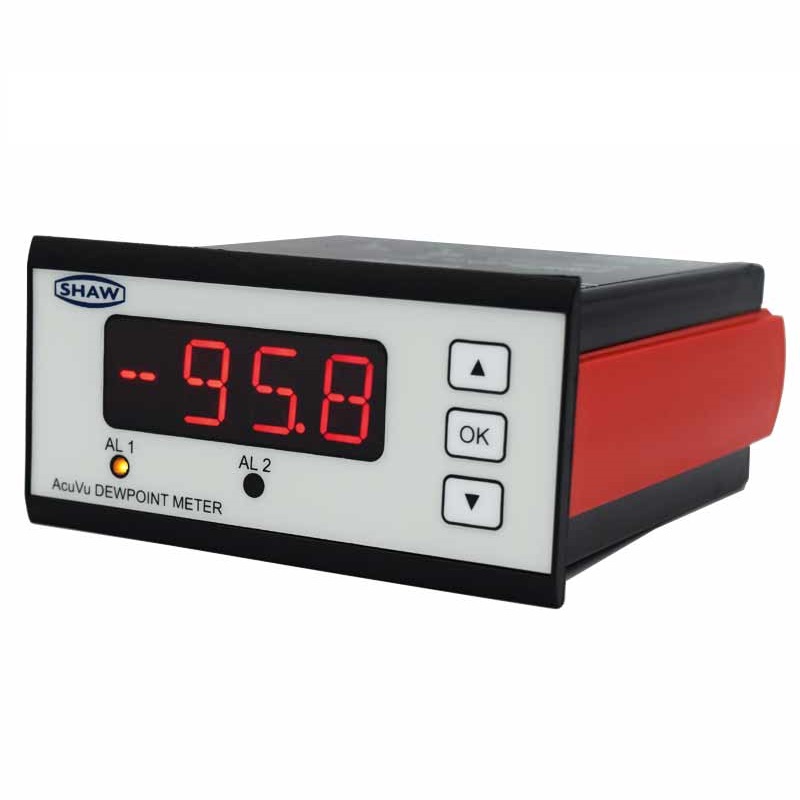

Shaw AcuVu 湿度计

Various ranges available: overall range -120 °C to +20 °C (-184 °F to +68 °F) dewpoint

Accuracy: ±2 °C dewpoint (±3.6 °F) (when paired with the Model AcuDew Dewpoint Transmitter)

Power Consumption: 3.5W maximum

Display:4-digit, 14 segment LED indicator. Red characters 13.8 mm (h) Factory configured to display: °C, °F, ppm(v), ppb(v), g/m3 or lb/MMSCF

Weight: 230 grams

Dimensions (H x W x D): 48 mm x 96 mm x 120 mm

Load (max): 20 mA / 800 Ω /16 V DC

Isolation Voltage, Test/Operation: 2.3 k V AC / 250 V AC

Weatherproof Classification:Front panel only - IP65 (NEMA 4)

Output Signal: 4-20 mA or 0-20 mA

Operating Voltage: 90-250 V AC 50-0 Hz or 24V DC

Display: 5 character LED
