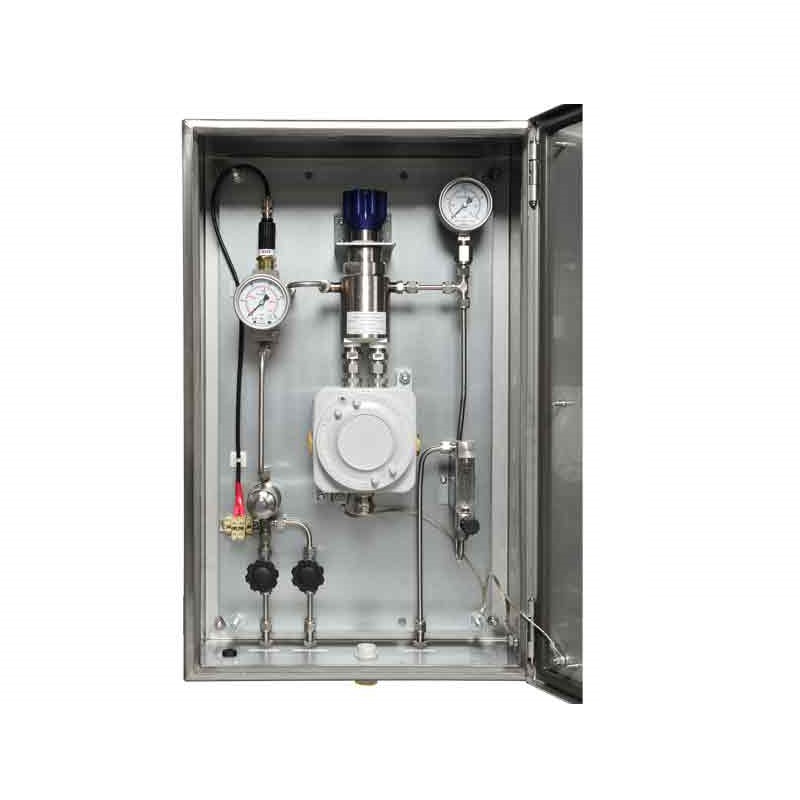

Shaw SSNGH 自然气体采样系统

Dimensions (overall)::418 mm (w) x 600 mm (h) x 210 mm (d)

• Weight: 9 kg

• Sensor Connection: Low loss coax cable (75 ohms max capacitance of 50pF per metre)

• Power Supply: 110 or 220 V AC single phase 50 or 60 Hz, 24 V DC

Sensor

Type (r): Sensor Range:

P (Purple):-100 / 0 °C DP, 0 - 6000 ppm

R (Red): -80 / -20 °C DP, 0 - 1000 ppm, 0 - 10 on TR version, (AutoCal)

G (Grey): -80 / 0 °C DP, 0 - 6000 ppm

B (Blue)*:-80 / +20 °C DP, 0 - 23,000 ppm (ManualCal)

Includes as standard:

IP66 rated stainless steel cabinet, particle filter and cartridge, heated presure regulator, sensor, sensor cable, sensor holder, pressure gauge, flow indicator
